3SE51320LU22

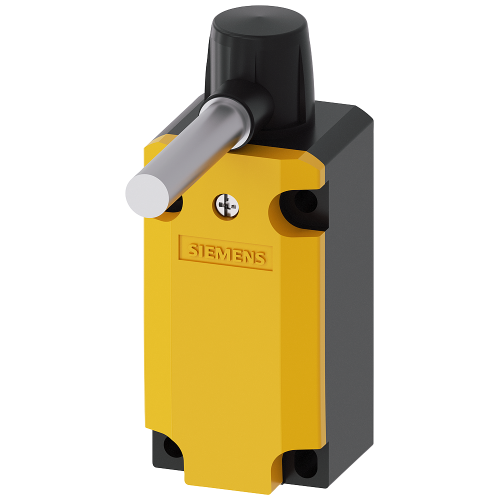

Hinge switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) Snap-action contacts 2 NC/1 NO integr

Manufacturer's No: 3SE5132-0LU22     Manufacturer: Siemens
Hinge switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) Snap-action contacts 2 NC/1 NO integrated, with solid shaft Diameter = 10 mm Actuating angle 10°

View 3D

Availability Back Order

£39.12
  • Plastic enclosure with hinge switch
  • Device connection: 1 x M20 x 1.5
  • Snap-action contacts: 2 NC/1 NO integrated
  • Solid shaft with a diameter of 10 mm
  • Actuating angle: 10°

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5132-0LU22
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Plastic
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Type of electric connection -
Cable entry metrical
Type of control element -
Other
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
87.3 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
102 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
40 Millimetre

Availability Back Order

£39.12
