3SE52320LU21

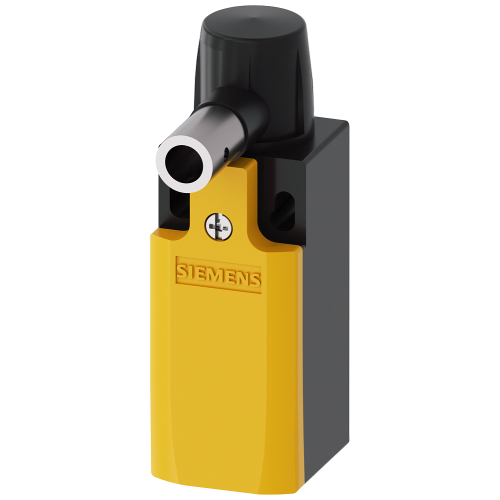

Hinge switch plastic enclosure, 31 mm, EN50047 1X

Manufacturer's No: 3SE5232-0LU21     Manufacturer: Siemens
Hinge switch plastic enclosure, 31 mm, EN50047 1X

View 3D

Availability Back Order

£38.02
  • Hinge switch with plastic enclosure
  • Device connection: 1 x (M20 x 1.5)
  • Snap-action contacts: 2 NC/1 NO integrated
  • Hollow shaft diameter: 8 mm
  • Actuating angle: 10 degrees

Accessories

Component part

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5232-0LU21
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Material housing -
Plastic
Degree of protection (IP) -
IP65
Type of interface -
None
Type of switching contact -
Quick-break switch
Type of electric connection -
Cable entry metrical
Type of control element -
Hollow shaft
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
52.8 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
92 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability Back Order

£38.02
