3SE66051BA

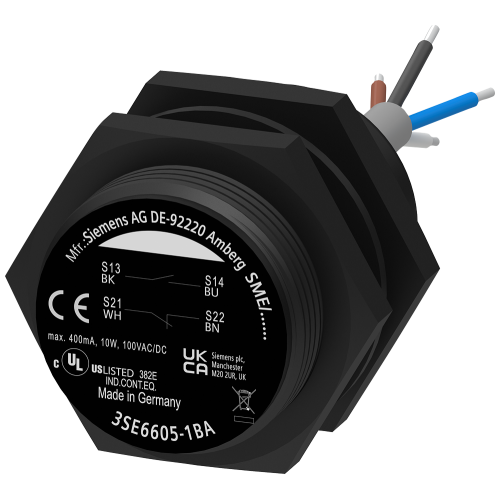

Magnetic switch contact block, round M30, contact blocks 1 NC/1 NO, 3 m cable

Manufacturer's No: 3SE6605-1BA     Manufacturer: Siemens

Availability Back Order

£63.88
  • Switch contact block for M30 round contact elements
  • 1 Normally Open (NO) + 1 Normally Closed (NC) contact
  • Equipped with a 3 meter cable
  • Requires solenoid 3SE6704-1BA

Selectable mandatory product



Product

Manufacturer Material ID -
3SE6605-1BA
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Coating housing -
UN
Switching distance -
- Millimetre
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Max. output current at protected output -
- Milliampere
Mechanical mounting condition for sensor -
UN
Min. output current -
- Milliampere
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Voltage type -
AC/DC
Suitable for safety functions -
Ambient temperature -
-25 Degrees celsius
Type of electric connection -
Cable
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cylinder, screw-thread
Protected switch distance OFF -
15 Millimetre
Protected switch distance ON -
5 Millimetre
Type of actuation -
Magnet
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
44 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1

Availability Back Order

£63.88
