3SE67041BA

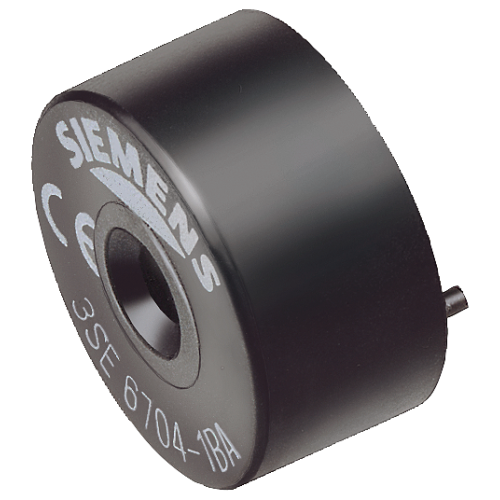

M30 Switching Magnet

Manufacturer's No: 3SE6704-1BA     Manufacturer: Siemens
M30 Switching Magnet

View 3D

Availability Back Order

£25.18
  • Type: Solenoid
  • Shape: Round
  • Size: M30

Selectable mandatory product



Product

Manufacturer Material ID -
3SE6704-1BA
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85051990
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32141110

Technical Specification

-
Siemens
Voltage type -
UN
Coating housing -
UN
Switching distance -
- Millimetre
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of electric connection -
UN
Type of switching output -
UN
Protected switch distance OFF -
- Millimetre
Protected switch distance ON -
- Millimetre
Max. output current at protected output -
- Milliampere
Min. output current -
- Milliampere
Type of actuation -
UN
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
None
Ambient temperature -
-25 Degrees celsius
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cylinder, screw-thread
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
15 Millimetre

Availability Back Order

£25.18
