3SE71401BD00

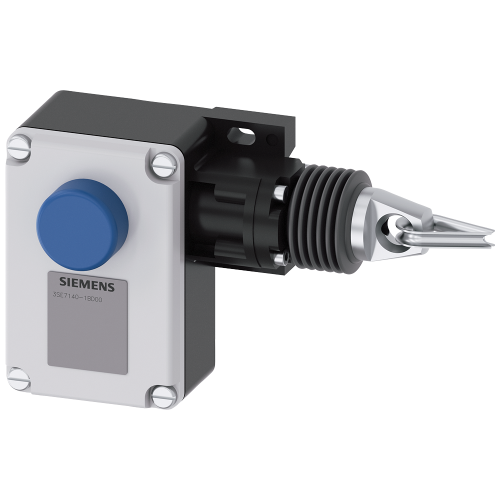

SIRIUS cable-operated switch metal encl., 1xM16x1.5 1 NO + 1 NC, latching EN ISO 13850

Manufacturer's No: 3SE7140-1BD00     Manufacturer: Siemens

Availability Back Order

£391.25
  • Cable-operated switch with metal enclosure
  • 1 NO + 1 NC contacts
  • Latching mechanism according to EN ISO 13850
  • Pushbutton release
  • Suitable for wire lengths up to 50 meters
  • Thread size: M20x1.5

Selectable mandatory product

Rope eye 4 mm packaging in set (4 units)

Product Code - 3SE79301AD
Price £1.94
In Stock

Accessories



Product

Manufacturer Material ID -
3SE7140-1BD00
Net Weight -
0.80kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Colour -
UN
Number of actuation directions -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP65
Max. length of pull cord -
130 Metre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
With tension indication -

Availability Back Order

£391.25
