3SE71411EG10

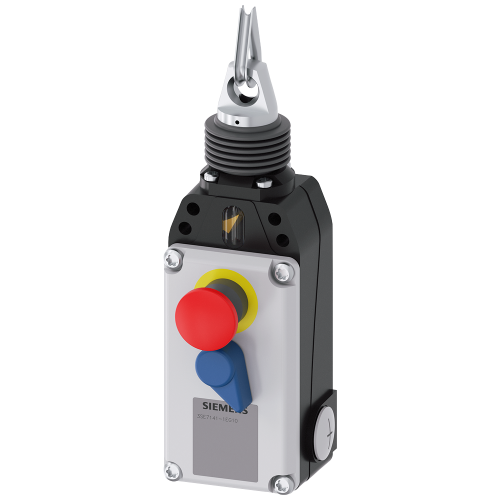

SIRIUS cable-operated switch with emergency stop, 3x M20x1.5, 1 NO + 3 NC, latching acc. to EN418

Manufacturer's No: 3SE7141-1EG10     Manufacturer: Siemens

Availability In Stock

£335.35
  • Cable-operated switch with emergency stop
  • Metal housing with IP67 protection
  • Slow-action contacts: 1 NO + 3 NC
  • Latching mechanism according to EN ISO 13850
  • Rotate-to-unlatch feature
  • Suitable for wire lengths up to 75 meters
  • Thread size: 3 x M20 x 1.5

Selectable mandatory product

Rope eye 4 mm packaging in set (4 units)

Product Code - 3SE79301AD
Price £1.94
In Stock

Accessories



Product

Manufacturer Material ID -
3SE7141-1EG10
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Colour -
UN
Number of actuation directions -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Max. length of pull cord -
100 Metre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
1
With tension indication -

Availability In Stock

£335.35
