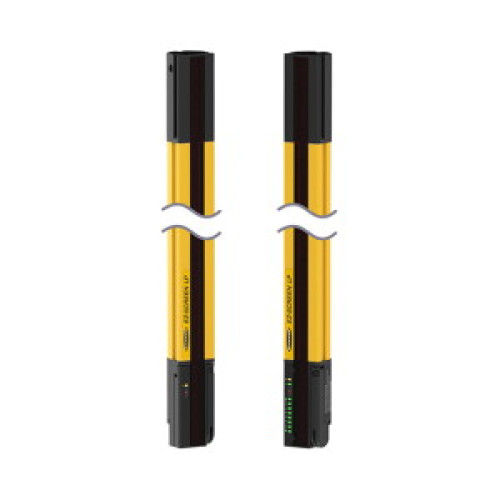

SLPP25-970P88 EZ-SCREEN Low Profile Pair, Resolution: 25, Response (Tr): 15.5 ms, Beams: 49, Range: 0.1-7 m (4 in - 23 ft), Height

Manufacturer's No: SLPP25-970P88     Manufacturer: Turck Banner
SLPP25-970P88 EZ-SCREEN Low Profile Pair, Resolution: 25, Response (Tr): 15.5 ms, Beams: 49, Range: 0.1-7 m (4 in - 23 ft), Height: 970 (38.2 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability Available to order

£3,044.89
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. range: 7000 mm
  • Cable length: 0.3 m, with M12 × 1 connector
  • Operating voltage: 24 VDC ± 15%
  • Resolution: 25 mm
  • Scan field: 970 mm (L1)
  • Protection class: IP65
  • Flat housing without blind zone
  • Adjustments via DIP switch
  • Reducible resolution and blanking function

Read more

  • Personnel safety category 4, PL e acc. to EN ISO 13849-1:2008
  • Type 4 acc. to IEC 61496-1, -2
  • SIL 3 to IEC 61508


Product

Manufacturer Material ID -
SLPP25-970P88
Net Weight -
4.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151804

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
969 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
25.5 Millisecond
Resolution of the light curtain -
25 Millimetre
Safety field height -
970 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability Available to order

£3,044.89
