3061675

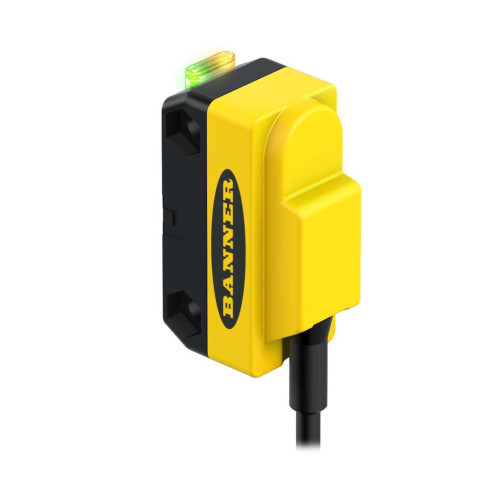

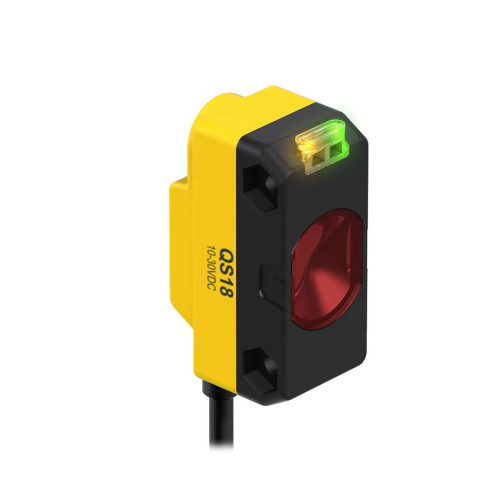

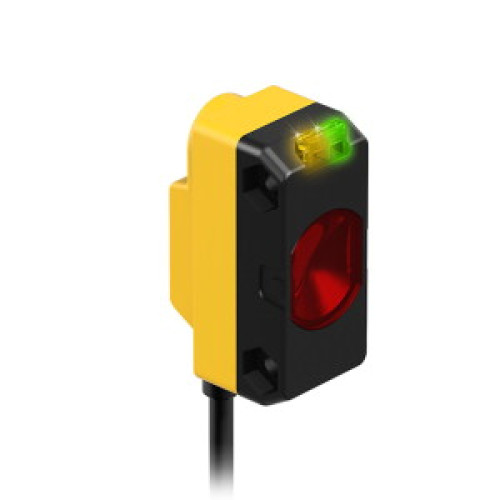

WORLD-BEAM QS18 Series: Emitter (Flush Front), Range: 3 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: QS186EB     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Emitter (Flush Front), Range: 3 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability Back Order

£49.27
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED: All-round visible


Product

Manufacturer Material ID -
QS186EB
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

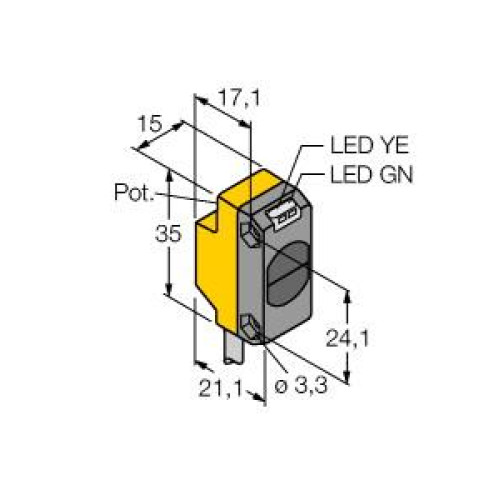

Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
27.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
