3073042

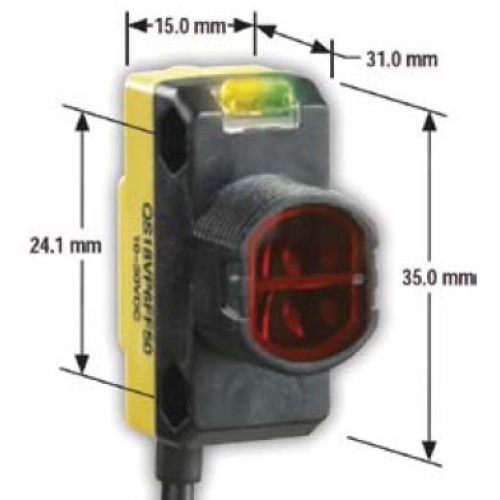

WORLD-BEAM QS18 Series: Laser Diffuse, Range: 300 mm, Input: 10-30V dc, Output: Complementary Solid State PNP, Pico-Style Quick-Di

Manufacturer's No: QS18VP6LDQ     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Laser Diffuse, Range: 300 mm, Input: 10-30V dc, Output: Complementary Solid State PNP, Pico-Style Quick-Disconnect Connector

Availability Back Order

POA
  • Type: Laser Diffuse
  • Range: 300 mm
  • Input: 10-30V dc
  • Output: Complementary Solid State PNP
  • Connector: Pico-Style Quick-Disconnect
  • Cable Length: 150 mm (6 in) 3-pin M8 Pigtail QD


Product

Manufacturer Material ID -
QS18VP6LDQ
Net Weight -
0.06kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Turck Banner
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
