3KD34400NE100

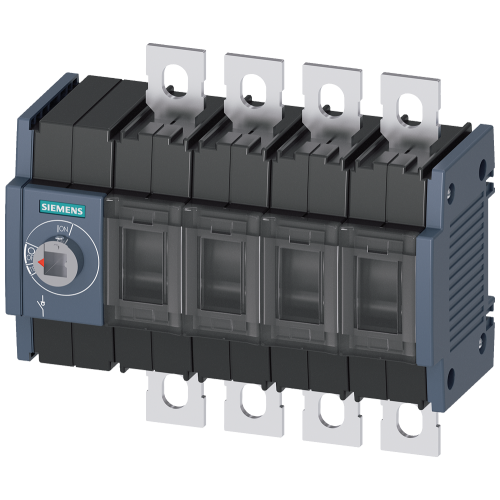

Switch disconnector 160 A, size 2, 4-pole, front operating mechanism on left, basic unit

Manufacturer's No: 3KD3440-0NE10-0     Manufacturer: Siemens
Switch disconnector 160 A, size 2, 4-pole, front operating mechanism on left, basic unit

View 3D

Availability In Stock

£130.33
  • Switch disconnector
    • 160A
    • Size 2
    • 4-pole
    • Front operating mechanism on the left
    • Basic unit without handle
    • Flat terminal
    • Includes phase barriers

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD3440-0NE10-0
Net Weight -
1.27kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of control element -
None
Colour control element -
Other
Suitable for distribution board installation -
Suitable for intermediate mounting -
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
90 Kilowatt
Rated permanent current at AC-21, 400 V -
160 Ampere
Rated permanent current at AC-23, 400 V -
160 Ampere
Rated permanent current Iu -
160 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
90 Kilowatt
Type of electrical connection of main circuit -
Flat plug-in connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
