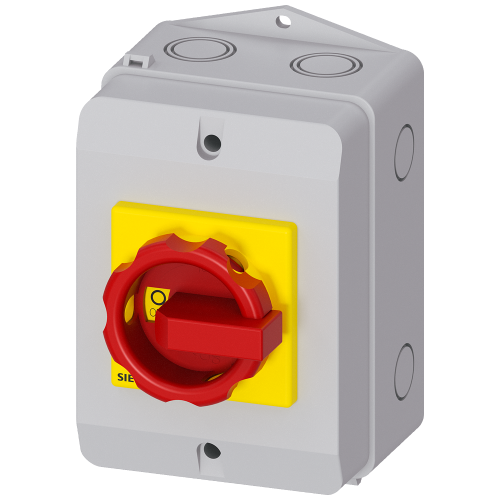

SENTRON, 3LD switch disconnector, EMERGENCY OFF switch, 3-pole, Iu: 16 A

3LD20640TB53

SENTRON, 3LD switch disconnector, EMERGENCY OFF switch, 3-pole, Iu: 16 A

Produced by Siemens

Availability In Stock

Price - £36.18
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 16 A, operating power / at AC-23 A 400 V: 7.5 kW, Molded plastic encapsulation for metric cable gland, rotary operating mechanism, red/yellow
No alternatives available for this product.
Product
Manufacturer Material ID -
3LD2064-0TB53
Net Weight -
0.41kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216
Technical Specification
Rated operation power at AC-3, 400 V -
6 Kilowatt
Rated permanent current Iu -
16 Ampere
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
8 Kilowatt
Rated short-time withstand current lcw -
0.34 kiloampere
Max. rated operation voltage Ue AC -
690 Volt
Rated permanent current at AC-21, 400 V -
16 Ampere
Rated permanent current at AC-23, 400 V -
16 Ampere
