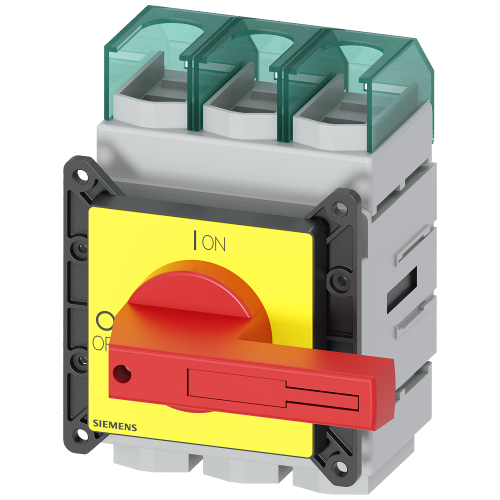

3LD24050TK13

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu=250 A, operating power

Manufacturer's No: 3LD2405-0TK13     Manufacturer: Siemens
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu=250 A, operating power

View 3D

Availability Back Order

£329.52
  • Product: SENTRON Switch Disconnector 3LD
  • Type: Emergency switching-off switch
  • Configuration: 3-pole
  • Rated Current: Iu=250 A
  • Operating Power at AC-23 A 400 V: 132 kW
  • Mechanism: Front-mounted, knob-operated
  • Handle Color: Red/Yellow
  • Mounting: 4-hole configuration

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD2405-0TK13
Net Weight -
2.11kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Red
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
132 Kilowatt
Rated operation power at AC-3, 400 V -
110 Kilowatt
Rated permanent current at AC-21, 400 V -
250 Ampere
Rated permanent current at AC-23, 400 V -
224 Ampere
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for front mounting 4-hole -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£329.52
