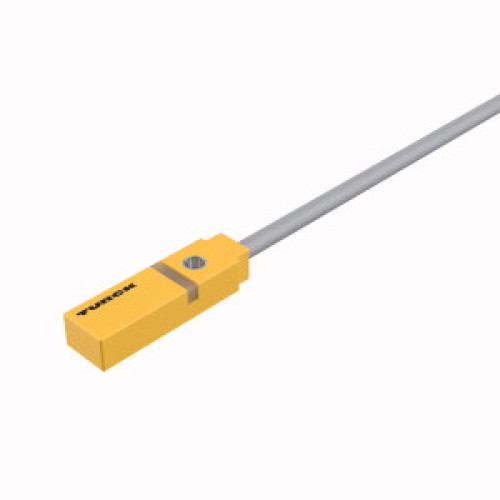

Inductive Sensor, Operating voltage 10…30 VDC, Rated switching distance

Manufacturer's No: BI2-Q5.5-AP6X     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage 10…30 VDC, Rated switching distance

Availability Available to order

POA
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 2 mm
  • Flush Mounting
  • Cable Length: 2 m
  • Rectangular Shape, Height: 5.5 mm
  • Active Face on Top
  • Material: Plastic (PP)
  • DC 3-Wire
  • Output: PNP NO Contact

Read more

  • Cable Connection

Accessories



Product

Manufacturer Material ID -
BI2-Q5.5-AP6X
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84879090
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Mounting method -
Surface mounted (plaster)
Rated insulation voltage Ui -
0.00 Volt
Type of inlet -
Swivel
Circuit integrity -
None
Number of inlets -
0.00
Cover attachment -
Snapped on
For Ex-zone gas -
None
For Ex-Zone dust -
None
Plate thickness cabinet -
125.00 Millimetre
Degree of protection (NEMA) -
UN
Material quality -
Other
Impact strength -
IK08
Degree of protection (IP) -
IP65
Surface finishing -
Powder coating
Colour -
Stainless steel
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Depth -
155 Millimetre
Freestanding -
Height -
300 Millimetre
Height of sensor -
5.5 Millimetre
Housing material -
Plastic
Impact resistance (IK rating) -
IK08
Length of sensor -
28 Millimetre
Material -
Steel
Material qualifier -
Other
Mechanical mounting condition for sensor -
Concise
Number of doors -
1
Number of locks -
1
RAL number -
7035
Suitable for wall mounting -
Supply voltage -
10 Volt
Surface finish -
Powder coated
Switching distance -
2 Millimetre
Switching frequency -
2000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width -
800 Millimetre
Width sensor -
8 Millimetre
