2000-510

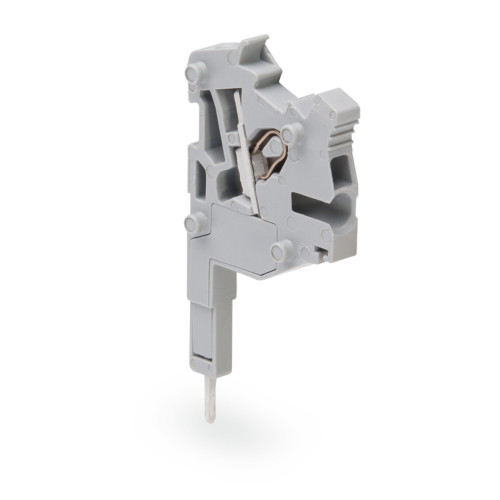

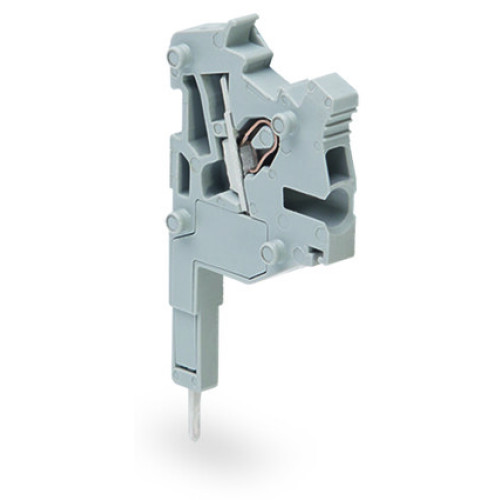

TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1,00 mm²; gray

Manufacturer's No: 2000-510     Manufacturer: WAGO
TOPJOB®S L-type test plug module; modular; for jumper contact slot; 1,00 mm²; gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

POA
  • TOPJOB®S L-type test plug module
  • Modular design for jumper contact slot
  • Wire size: 1.00 mm²
  • Color: Gray

Accessories

WMB marking card; as card; plain; snap-on type; white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-3501
Price £3.01
Back Order
Price £0.09
Back Order
Price £0.09
Back Order

End plate; for modular TOPJOB®S connector; 1.5 mm thick; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2002-541
Price £0.255
List Price £0.34
In Stock

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2000-549
Price POA
Back Order


Product

Manufacturer Material ID -
2000-510
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121410

Technical Specification

Width/grid dimension -
3.5 Millimetre
Connectable conductor cross section -
0.14 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Model -
Pin insert
Number of poles -
1
Rated current In -
13.5 Ampere
Rated voltage -
500 Volt
Tackable -
Total number of poles (without ground contact) -
1
Type of electric connection -
Spring clamp connection
