2006-7114

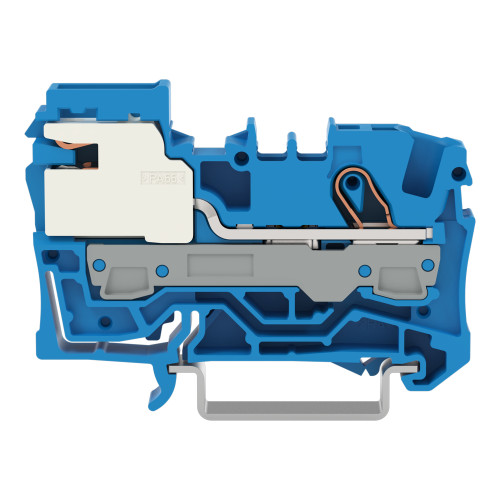

1-conductor N-disconnect terminal block, 6 mm², Push-in CAGE CLAMP®, blue

Manufacturer's No: 2006-7114     Manufacturer: WAGO
1-conductor N-disconnect terminal block, 6 mm², Push-in CAGE CLAMP®, blue

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£3.23
  • Terminal block type: 1-conductor N-disconnect
  • Wire size capacity: 6 mm²
  • Connection method: Push-in CAGE CLAMP®
  • Color: Blue
  • Conductor size: 6.00 mm²

Accessories

Jumper, from 1 to 3, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-433
Price £0.8025
List Price £1.07
Available to order

Jumper, from 1 to 4, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-434
Price £1.52
List Price £1.49
Available to order

Jumper, from 1 to 5, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-435
Price £2.02
Available to order

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Available to order

Ferrule Sleeve for 1 mm / AWG 18 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Available to order

Ferrule Sleeve for 4 mm / AWG 12 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Available to order

Ferrule Sleeve for 6 mm / AWG 10 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-208
Price £0.16
In Stock

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-192
Price £0.1875
List Price £0.25
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-193
Price £0.195
List Price £0.26
Available to order

End and intermediate plate, 1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-7192
Price £0.41
Available to order

Star point jumper, 3-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-405/011-000
Price £1.88
Available to order


Product

Manufacturer Material ID -
2006-7114
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
PL
Minimum Order Quantity -
50
UNSPSC -
39122216

Technical Specification

Length -
60 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
7.5 Millimetre
Height at lowest possible mounting height -
38 Millimetre
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
1.5 Square millimetre
Connecting plate required -
Depth -
38.1 Millimetre
Height -
60.1 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions -
1
Operating temperature -
105 Degrees celsius
Rated current In -
51 Ampere
Rated voltage -
250 Volt
Suitable for N-busbar -
3x10 mm
Type of electric connection -
Spring clamp connection
Width -
7.5 Millimetre
