2006-8661

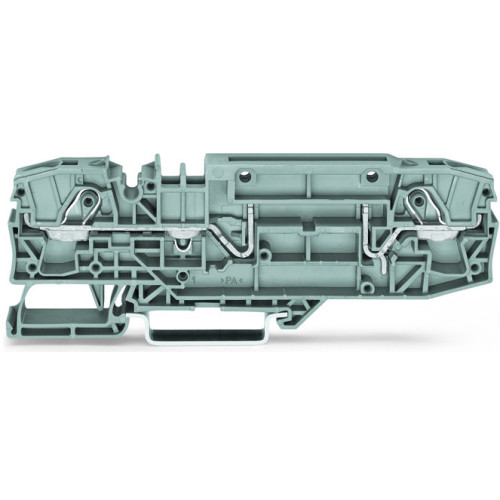

2-conductor carrier terminal block, with test option, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 2006-8661     Manufacturer: WAGO
2-conductor carrier terminal block, with test option, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£3.13
  • 2-conductor carrier terminal block
  • Test option included
  • For DIN-rail 35 x 15 and 35 x 7.5
  • Push-in CAGE CLAMP® technology
  • Maximum wire size: 6.00 mm²
  • Color: Gray

Accessories

Jumper, from 1 to 3, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-433
Price £0.8025
List Price £1.07
Available to order

Jumper, from 1 to 5, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-435
Price £2.02
Available to order

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Available to order

Ferrule Sleeve for 1 mm / AWG 18 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Available to order

Ferrule Sleeve for 4 mm / AWG 12 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Available to order

Ferrule Sleeve for 6 mm / AWG 10 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-208
Price £0.16
Available to order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-121
Price £0.195
List Price £0.26
Available to order

Lockout cap, for wire insertion and actuating opening, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-191
Price £0.2775
List Price £0.37
Available to order

Disconnect plug for carrier terminal blocks, for using a receptacle terminal block as a disconnect terminal block, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-401
Price £1.22
Available to order

End and intermediate plate, 1 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-8691
Price £0.52
Available to order

End and intermediate plate, 1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2006-8692
Price POA
Available to order


Product

Manufacturer Material ID -
2006-8661
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
12
UNSPSC -
39121402

Technical Specification

Length -
106.9 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
15 Millimetre
Height at lowest possible mounting height -
33 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Depth -
33 Millimetre
Height -
106.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
15 Millimetre
