2016-7111

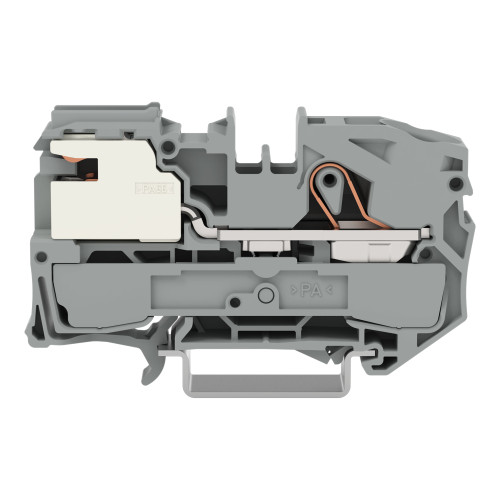

1-conductor power distribution disconnect terminal block, 16 mm², Push-in CAGE CLAMP®, gray

Manufacturer's No: 2016-7111     Manufacturer: WAGO
1-conductor power distribution disconnect terminal block, 16 mm², Push-in CAGE CLAMP®, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£3.88
  • 1-conductor power distribution disconnect terminal block
  • Push-in CAGE CLAMP® for easy installation
  • Terminal block size: 16.00 mm²
  • Color: gray

Accessories

Jumper, 3-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-403
Price £1.575
List Price £2.10
Available to order

Jumper, 5-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-405
Price £3.12
List Price £4.16
Available to order

Jumper, from 1 to 3, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-433
Price £1.65
List Price £2.20
Available to order

Jumper, from 1 to 4, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-434
Price £3.34
Available to order

Jumper, from 1 to 5, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-435
Price POA
Available to order

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-286
Price £0.15
Available to order

Ferrule Sleeve for 4 mm / AWG 12 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-287
Price £0.15
Available to order

Ferrule Sleeve for 6 mm / AWG 10 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-288
Price £0.30
Available to order

Ferrule, Sleeve for 10 mm² / AWG 8, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-289
Price £0.37
Available to order

Ferrule, Sleeve for 16 mm² / AWG 6, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-210
Price £0.41
Available to order

End and intermediate plate, 1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-7192
Price £0.3375
List Price £0.45
Available to order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-192
Price £0.1875
List Price £0.25
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2009-193
Price £0.195
List Price £0.26
Available to order

Star point jumper, 3-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2016-405/011-000
Price £3.3225
List Price £4.43
Available to order


Product

Manufacturer Material ID -
2016-7111
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
25
UNSPSC -
39121410

Technical Specification

Length -
69 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
12 Millimetre
Height at lowest possible mounting height -
38 Millimetre
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Connecting plate required -
Depth -
38.1 Millimetre
Height -
69.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions -
1
Operating temperature -
105 Degrees celsius
Rated current In -
76 Ampere
Rated voltage -
250 Volt
Suitable for N-busbar -
3x10 mm
Type of electric connection -
Spring clamp connection
Width -
12 Millimetre

Availability Available to order
