2020-102

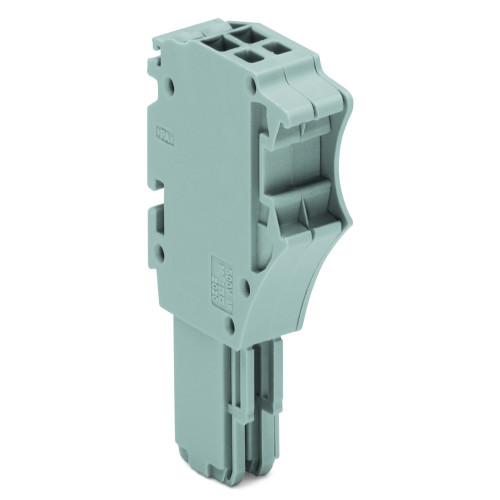

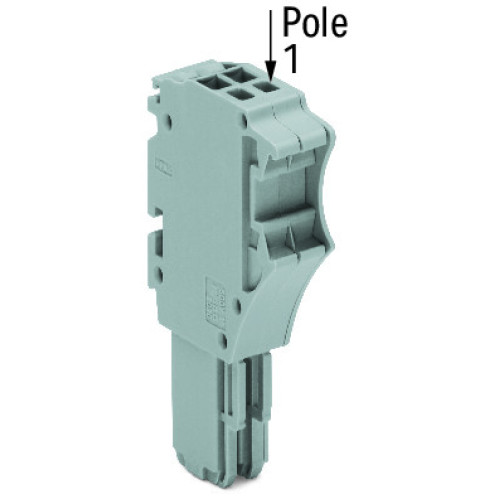

1-conductor female connector, Push-in CAGE CLAMP®, 1.5 mm², gray

Manufacturer's No: 2020-102     Manufacturer: WAGO
1-conductor female connector, Push-in CAGE CLAMP®, 1.5 mm², gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£1.88
  • 1-conductor female connector
  • Push-in CAGE CLAMP® for easy and secure connection
  • 1.5 mm² wire capacity
  • Pin spacing of 3.5 mm
  • 2-pole connector
  • Color: gray

Accessories

WMB marking card, as card, plain, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-3501
Price £3.01
Back Order

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
Back Order

Strain relief plate, for female and male connectors, 6 mm wide, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 734-327
Price £0.36
Back Order

Locking lever, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2022-142
Price £0.0825
List Price £0.11
Back Order

Locking lever, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2022-141
Price £0.11
Back Order


Product

Manufacturer Material ID -
2020-102
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
20.7 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
3.5 Millimetre
Height at lowest possible mounting height -
39 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
40.5 Millimetre
Halogen free -
Height -
22.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
2
Operating temperature -
105 Degrees celsius
Rated current In -
13.5 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.7 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£1.88
