232-588/007-000

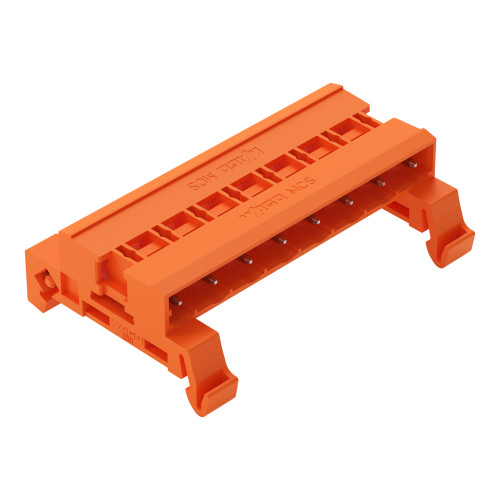

Double pin header, DIN-35 rail mounting, 8-pole, Pin spacing 7.62 mm, orange

Manufacturer's No: 232-588/007-000     Manufacturer: WAGO
Double pin header, DIN-35 rail mounting, 8-pole, Pin spacing 7.62 mm, orange

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£3.98
  • Double pin header
  • DIN-35 rail mounting
  • 8-pole
  • Pin spacing: 7.62 mm
  • Color: Orange

Accessories

Coding key, snap-on type, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 231-130
Price £0.08
Back Order


Product

Manufacturer Material ID -
232-588/007-000
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
10
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
42.5 Millimetre
Operation temperature -
105 Degrees celsius
Number of clamp positions per pole -
2
Width/grid dimension -
7.62 Millimetre
Height at lowest possible mounting height -
15 Millimetre
Connection position -
Sideways
Colour -
Orange
Depth -
42.5 Millimetre
Height -
6.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of poles -
8
Operating temperature -
-60 Degrees celsius
Rated current In -
12 Ampere
Rated voltage -
320 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
7.62 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£3.98
