280-510

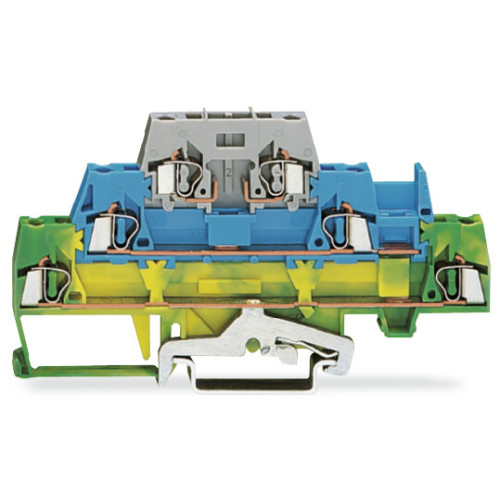

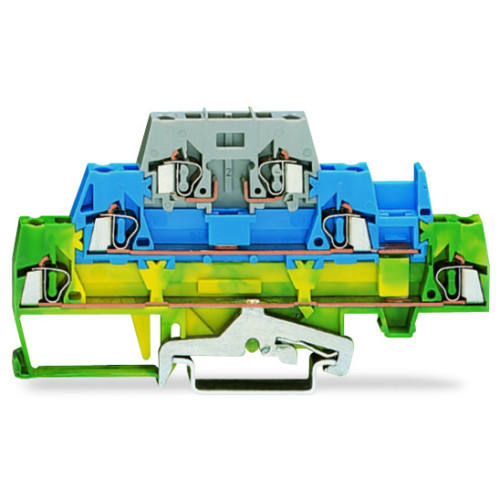

Triple-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², green-yellow/blue/gray

Manufacturer's No: 280-510     Manufacturer: WAGO
Triple-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², green-yellow/blue/gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£9.11
  • Triple-deck terminal block
  • For DIN-rail 35 x 15 and 35 x 7.5
  • CAGE CLAMP® technology
  • Wire size capacity: 2.5 mm²
  • Color options: green-yellow, blue, gray

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-852/281-413
Price £17.10
On Request

Jumper, 5-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-485
Price £1.10
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Ferrule, Sleeve for 0.75 mm² / AWG 20, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-102
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / AWG 22, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-101
Price £0.02
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-103
Price £0.02
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-104
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-201
Price £0.05
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-202
Price £0.05
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-203
Price £0.05
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-204
Price £0.05
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-301
Price £0.05
On Request

Ferrule, Sleeve for 0.34 mm² / 22 AWG, insulated, light turquoise

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-302
Price £0.05
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-850/281-413
Price £17.10
On Request

Push-in type wire jumper, insulated, 60 mm long, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-125
Price £4.72
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-126
Price £4.75
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-127
Price £4.91
On Request

Staggered jumper, from 1 to 6, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-456
Price £1.29
On Request

End and intermediate plate, 2.5 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-303
Price £0.48
On Request

Intermediate plate, 1.1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-336
Price £0.48
In Stock

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-409
Price £0.65
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-471
Price £0.11
On Request

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-472
Price £0.11
On Request

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-482
Price £0.50
On Request

Jumper, 10-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-490
Price £1.53
On Request

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-492
Price £0.96
On Request

Jumper, 4-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-484
Price £1.00
On Request

Jumper, 3-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-483
Price £0.91
On Request

Vertical jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-421
Price £0.68
On Request

Staggered jumper, from 1 to 3, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-453
Price £0.80
On Request

Staggered jumper, from 1 to 4, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-454
Price £0.99
On Request

Staggered jumper, from 1 to 5, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-455
Price £1.11
On Request

L-type end module, modular, with rigid contact pin, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-142
Price £6.62
On Request

Fuse plug, with soldered miniature fuse, 250 mA FF, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-850
Price £11.81
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-850/281-414
Price £17.10
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-850/281-415
Price £17.55
On Request

Fuse plug, with soldered miniature fuse, 500 mA FF, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-852
Price £11.81
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-852/281-414
Price £17.10
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-852/281-415
Price £19.32
On Request

Fuse plug, with soldered miniature fuse, 1 A FF, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-854
Price £11.81
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-854/281-413
Price £16.77
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-854/281-414
Price £15.23
On Request

Fuse plug, with soldered miniature fuse, 2 A FF, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-856
Price £11.81
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-856/281-413
Price £17.10
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-856/281-414
Price £17.10
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-123
Price £4.88
On Request

Wire commoning chain, 2.5 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 709-111
Price POA
On Request

Fuse plug, with soldered miniature fuse, with indicator lamp, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-856/281-415
Price POA
On Request

Staggered jumper, from 1 to 7, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-457
Price £1.54
On Request

Staggered jumper, from 1 to 8, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-458
Price £1.79
On Request


Product

Manufacturer Material ID -
280-510
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
103 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
49.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
49.5 Millimetre
Height -
103 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
3
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre
