281-917

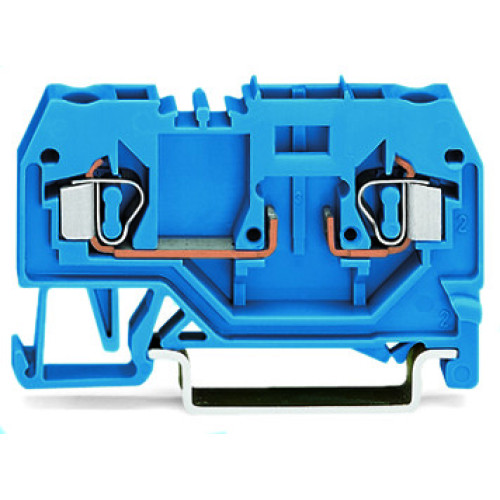

2-conductor carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², blue

Manufacturer's No: 281-917     Manufacturer: WAGO
2-conductor carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², blue

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 2-conductor carrier terminal block
  • For DIN-rail 35 x 15 and 35 x 7.5
  • CAGE CLAMP® technology
  • Wire size capacity: 4 mm²
  • Color: Blue

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-244
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-246
Price £0.09
On Request

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
On Request

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
On Request

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
On Request

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
On Request

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-106
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-201
Price £0.05
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-202
Price £0.05
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-203
Price £0.05
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-204
Price £0.05
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-206
Price £0.05
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-301
Price £0.05
On Request

Ferrule, Sleeve for 0.34 mm² / 22 AWG, insulated, light turquoise

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-302
Price £0.05
On Request

Ferrule, Sleeve for 2.08 mm² / AWG 14, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-205
Price £0.05
On Request

Push-in type wire jumper, insulated, 60 mm long, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-125
Price £4.72
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-126
Price £4.75
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-127
Price £4.91
On Request

End and intermediate plate, 2.5 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-329
Price £0.48
On Request

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-492
Price £1.07
In Stock

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-471
Price £0.11
On Request

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-482
Price £0.56
On Request

Jumper, 3-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-483
Price £1.05
On Request

Jumper, 5-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-485
Price £1.22
On Request

Jumper, 10-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-490
Price £2.43
On Request

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
On Request

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
On Request

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
On Request

Insulation stop, 0.75 - 1.5 mm², 5 pieces/strip, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 281-472
Price £0.10
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-123
Price £4.88
On Request

Wire commoning chain, 2.5 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 709-111
Price POA
On Request


Product

Manufacturer Material ID -
281-917
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39121402

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
59 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
6 Millimetre
Height at lowest possible mounting height -
29 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
29 Millimetre
Height -
59 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
10 Ampere
Rated voltage -
400 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
6 Millimetre
