282-639

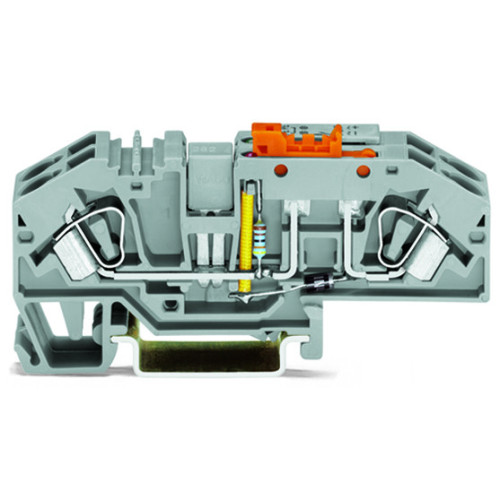

Ground conductor disconnect terminal block, with test option, with orange disconnect link, gray

Manufacturer's No: 282-639     Manufacturer: WAGO
Ground conductor disconnect terminal block, with test option, with orange disconnect link, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£29.25
  • Ground conductor disconnect terminal block
  • Test option included
  • Orange disconnect link for easy identification
  • Voltage: 230 V
  • Conductor size: 6 mm²
  • CAGE CLAMP® technology
  • Color: Gray

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Available to order

Ferrule Sleeve for 1 mm / AWG 18 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Available to order

Ferrule Sleeve for 4 mm / AWG 12 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Available to order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Available to order

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.34
Available to order

Jumper, insulated, yellow-green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-422
Price £0.56
Available to order

End plate, 2 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-333
Price £0.51
Available to order

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-409
Price £0.93
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-143
Price £0.51
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-144
Price £0.51
Available to order

Wire commoning chain, 2.5 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 709-111
Price POA
Available to order

WMB marking card, as card, for terminal block width 5 - 17.5 mm, brown

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-5501/000-014
Price POA
Available to order


Product

Manufacturer Material ID -
282-639
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
12
UNSPSC -
39122216

Technical Specification

Length -
85 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
37 Millimetre
Connection position -
Inclined
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
37 Millimetre
Height -
85 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
400 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Type of slitting -
None
Width -
16 Millimetre

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£29.25
