282-640

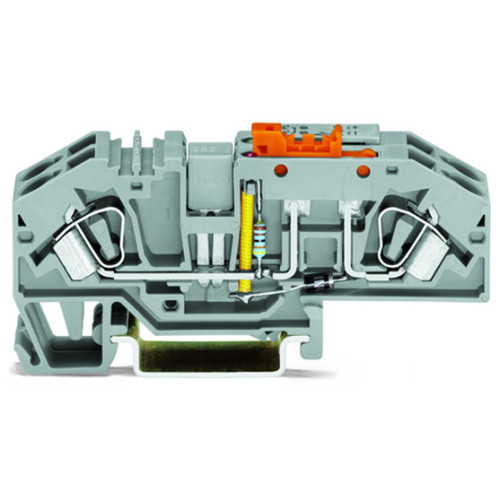

Ground Conductor Disconnect Tb, With Test Option Orange Disconnect Link Gray

Manufacturer's No: 282-640     Manufacturer: WAGO
Ground Conductor Disconnect Tb, With Test Option Orange Disconnect Link Gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£30.52
  • Ground conductor disconnect terminal block
  • Test option included
  • Orange disconnect link
  • Voltage: 24 V
  • Conductor size: 6 mm²
  • CAGE CLAMP® technology
  • Conductor size: 6.00 mm²
  • Color: Gray

Accessories

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Back Order

Ferrule, Sleeve For 1 mm / Awg 18 Insulated Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Back Order

Ferrule, Sleeve For 2.5 mm / Awg 14 Insulated Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Back Order

Ferrule; Sleeve for 4 mm / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Back Order

Pivoting Group Marker Carrier, Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-105
Price £0.24
Back Order

Mounting Carrier, For Isolated Mounting On Din Rail Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-106
Price £0.33
Back Order

Adjacent Jumper, Insulated Nominal Current 41 A Yellow-Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 282-422
Price £0.55
Back Order

End Plate, 2 mm Thick

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 282-333
Price £0.50
Back Order

Alternate Jumper, Insulated Nominal Current 41 A Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 282-409
Price £0.91
Back Order

Group Marker Carrier, E.G., For 282 Series Straight Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-143
Price £0.50
Back Order

Cover Carrier, Type 2 Incl. Screws With Nut Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 709-168
Price £1.92
Back Order

Group Marker Carrier, E.G., For 282 Series Angled Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-144
Price £0.50
Back Order


Product

Manufacturer Material ID -
282-640
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
12
UNSPSC -
39122216

Technical Specification

Length -
85 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
37 Millimetre
Connection position -
Inclined
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
37 Millimetre
Height -
85 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
400 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Type of slitting -
None
Width -
16 Millimetre
