282-870

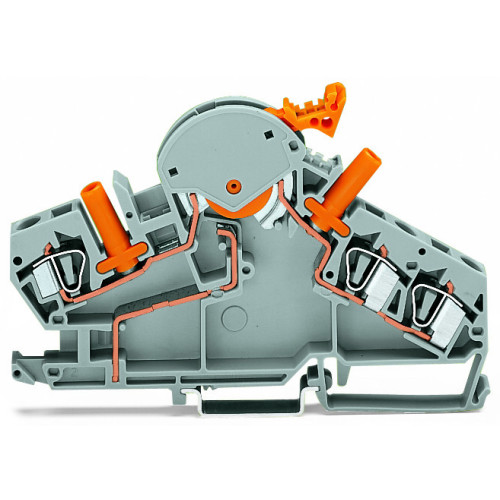

3-conductor disconnect/test terminal block, e.g., current transformer circuits, with touch-proof test sockets, gray

Manufacturer's No: 282-870     Manufacturer: WAGO
3-conductor disconnect/test terminal block, e.g., current transformer circuits, with touch-proof test sockets, gray

Availability In Stock

£12.36
  • 3-conductor disconnect/test terminal block
  • Touch-proof test sockets for 4 mm Ø test plugs
  • Suitable for DIN-rail 35 x 15 and 35 x 7.5
  • CAGE CLAMP® technology
  • Conductor size: 6.00 mm²
  • Color: Gray

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
Available to order

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
Available to order

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
Available to order

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-266
Price £0.09
Available to order

Ferrule, Sleeve for 4 mm² / AWG 12, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-267
Price £0.09
Available to order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Available to order

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.34
Available to order

Test plug adapter, 8.3 mm wide, for 4 mm Ø test plugs, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-170
Price £1.82
Available to order

Lock-out, for disconnect link, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-384
Price £0.35
In Stock

Jumper, insulated, yellow-green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-422
Price £0.56
Available to order

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 282-409
Price £0.93
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-143
Price £0.51
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-144
Price £0.51
Available to order

Wire commoning chain, 2.5 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 709-111
Price POA
Available to order

WMB marking card, as card, for terminal block width 5 - 17.5 mm, brown

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-5501/000-014
Price POA
Available to order

WMB marking card, as card, MARKED, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 794-5553/000-002
Price £4.55
Available to order


Product

Manufacturer Material ID -
282-870
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Minimum Order Quantity -
None
UNSPSC -
39122216

Technical Specification

Length -
122 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
8 Millimetre
Height at lowest possible mounting height -
75 Millimetre
Connection position -
Inclined
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
75 Millimetre
Height -
122 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
30 Ampere
Rated voltage -
500 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Type of slitting -
Swivelling
Width -
8 Millimetre
With integrated test socket -

Availability In Stock

£12.36
