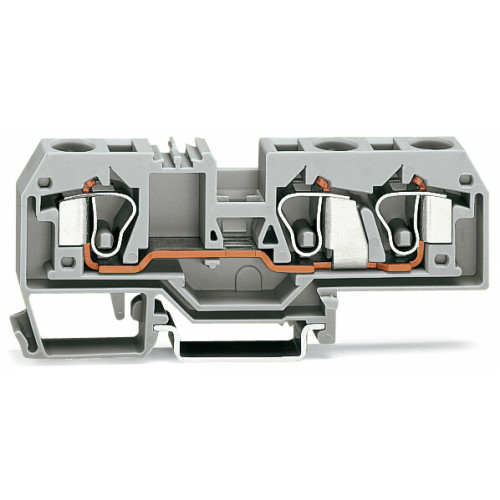

284-681

3-conductor through terminal block, 10 mm², center marking, gray

Manufacturer's No: 284-681     Manufacturer: WAGO
3-conductor through terminal block, 10 mm², center marking, gray

Availability In Stock

£3.85
  • 3-conductor through terminal block

  • CAGE CLAMP® for secure connections

  • Accommodates wire size up to 10.00 mm²

  • Suitable for DIN-rail 35 x 15 and 35 x 7.5

  • Features center marking for easy identification

  • Color: gray

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Available to order

Ferrule Sleeve for 1 mm / AWG 18 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Available to order

Ferrule Sleeve for 4 mm / AWG 12 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-267
Price £0.09
Available to order

Ferrule Sleeve for 6 mm / AWG 10 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-208
Price £0.16
In Stock

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Available to order

Ferrule, Sleeve for 6 mm² / AWG 10, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-108
Price £0.04
Available to order

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.34
Available to order

Test plug adapter, 8.3 mm wide, for 4 mm Ø test plugs, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-170
Price £1.82
Available to order

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 284-409
Price £0.94
Available to order

End and intermediate plate, 2.5 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 284-308
Price £0.73
Available to order

Separator plate, 2 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 284-340
Price £0.59
Available to order

Jumper, insulated, yellow-green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 284-422
Price £0.93
Available to order

End and intermediate plate, 2.5 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 284-339
Price £0.66
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Separator plate, 2 mm thick, oversized, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 284-309
Price £0.59
Available to order

B-type test plug module, modular, suitable for all WAGO 282 Series rail-mounted terminal blocks with jumper slots, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 709-310
Price £3.88
Available to order


Product

Manufacturer Material ID -
284-681
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
85369010
Minimum Order Quantity -
None
RoHs Compliance -
products/0200000400039e5a000100b6.jpg
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
97.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
35 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
35 Millimetre
Height -
97.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
57 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10 Millimetre

Availability In Stock

£3.85
