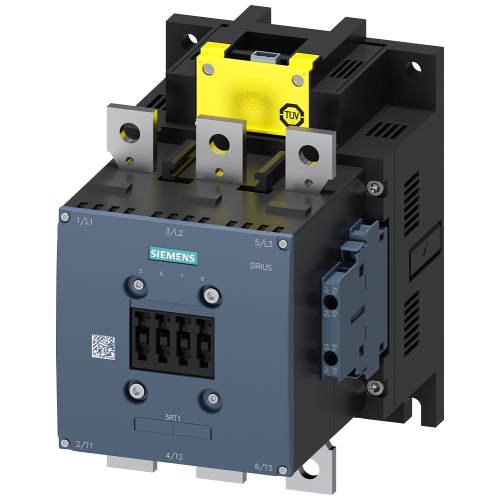

3RT14666SP36

Contactor, AC-1, 400 A/690 V/40 °C, 3-pole, 200-277 V AC/DC, F-PLC-IN, 2 NO+2 NC

Manufacturer's No: 3RT1466-6SP36     Manufacturer: Siemens
Contactor, AC-1, 400 A/690 V/40 °C, 3-pole, 200-277 V AC/DC, F-PLC-IN, 2 NO+2 NC

View 3D

Availability Back Order

£1,259.32
  • Power contactor AC-1: 400 A / 690 V / 40°C
  • 3-pole contactor
  • Rated operational voltage (Uc): 200-277 V AC (50-60 Hz) / DC
  • F-PLC input: 24 V DC
  • Drive: Electronic
  • Auxiliary contacts: 2 NO + 2 NC
  • Main circuit: Busbar
  • Control and auxiliary circuit: Screw terminal

Accessories

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1466-6SP36
Net Weight -
6.47kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
200 Volt
Rated control supply voltage Us at AC 60HZ -
200 Volt
Rated control supply voltage Us at DC -
200 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
200 Volt
Rated control supply voltage at AC 60 Hz -
200 Volt
Rated control supply voltage at DC -
200 Volt
Rated operation current Ie at AC-1, 400 V -
400 Ampere
Rated operation current Ie at AC-3, 400 V -
138 Ampere
Rated operation power NEMA -
91.93734375 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability Back Order

£1,259.32
