3RT14676NP36

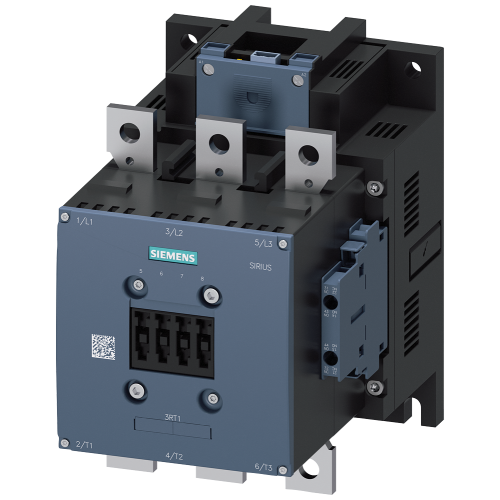

Contactor, AC-1, 500 A/690 V/40 °C, 3-pole, 200-277 V AC/DC, PLC-IN optional, 2 NO+2 NC

Manufacturer's No: 3RT1467-6NP36     Manufacturer: Siemens
Contactor, AC-1, 500 A/690 V/40 °C, 3-pole, 200-277 V AC/DC, PLC-IN optional, 2 NO+2 NC

View 3D

Availability Back Order

£1,590.72
  • Power contactor for AC-1 applications
  • Rated at 500 A and 690 V
  • Operating temperature of 40°C
  • 3-pole configuration
  • Control voltage: 200-277 V AC (50-60 Hz) / DC
  • PLC input at 24 V DC
  • Electronic drive with 2 NO + 2 NC auxiliary contacts
  • Main circuit uses busbar
  • Control and auxiliary circuit connected via screw terminals

Accessories

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1467-6NP36
Net Weight -
6.58kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
200 Volt
Rated control supply voltage Us at AC 60HZ -
200 Volt
Rated control supply voltage Us at DC -
200 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
200 Volt
Rated control supply voltage at AC 60 Hz -
200 Volt
Rated control supply voltage at DC -
200 Volt
Rated operation current Ie at AC-1, 400 V -
500 Ampere
Rated operation current Ie at AC-3, 400 V -
138 Ampere
Rated operation power NEMA -
91.93734375 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability Back Order

£1,590.72
