3SK12132AB40

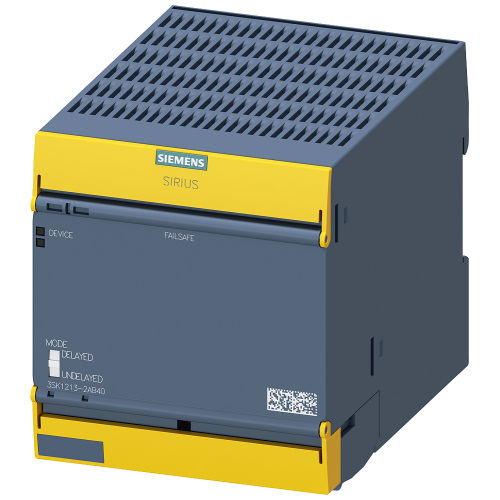

SIRIUS safety relay Output expansion 3RO Power, with Relay enabling circuits 3 NO contacts plus Rela

Manufacturer's No: 3SK1213-2AB40     Manufacturer: Siemens
SIRIUS safety relay Output expansion 3RO Power, with Relay enabling circuits 3 NO contacts plus Rela

Availability Back Order

£190.97
  • SIRIUS safety relay output expansion module
  • Features 3 normally open (NO) relay contacts for enabling circuits
  • Includes 1 normally closed (NC) relay contact for signaling circuit
  • Operating voltage: 24 V DC
  • Equipped with spring-type terminals for easy connection

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Presentation video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video
Product video


Product

Manufacturer Material ID -
3SK1213-2AB40
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Release-delay -
- Second
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Category according to EN 954-1 -
UN
Evaluation inputs -
UN
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Model -
Other
Rated control supply voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Voltage type for actuating -
DC
Depth -
121.6 Millimetre
Height -
100 Millimetre
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, delayed, with contact -
0
Number of outputs, signalling function, undelayed, with contact -
0
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Type of electric connection -
Spring clamp connection
Width -
90 Millimetre
With approval according to UL -
With approval for TÜV -
