570820

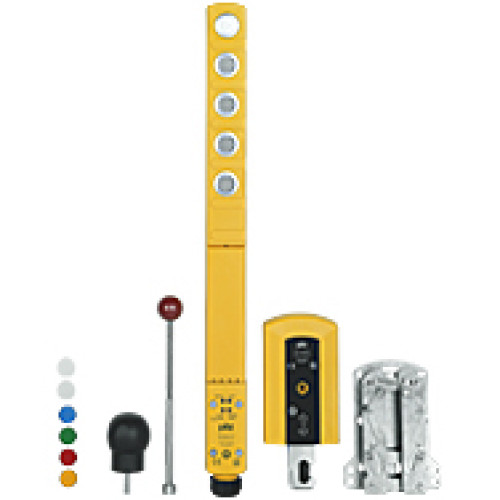

Safety gate system 2. generation safe interlock with safe guard locking

Manufacturer's No: PSEN sg2c-5LPLLC unit     Manufacturer: Pilz
Safety gate system 2. generation safe interlock with safe guard locking

Availability On Request

£830.43
  • Safety gate system 2nd generation with safe interlock and safe guard locking
  • Compliant with EN 60947-5-3 for applications up to SIL CL 3 and PL e
  • Consists of:
    • Illuminated pushbutton for safety gate activation
    • Pushbutton for access and release of safety gate
    • Two additional illuminated pushbuttons
    • Blind cover
  • Scope of supply includes sensing device with pushbuttons, colored caps, escape release bar, and actuator for right or left-hinged doors

Accessories



Product

Manufacturer Material ID -
PSEN sg2c-5LPLLC unit
Net Weight -
3.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
With status indication -
Type of switching contact -
Other
Type of interface for safety communication -
None
Type of electric connection -
Cable entry metrical
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Other
Degree of protection (IP rating) -
IP65
Number of safety auxiliary contacts -
2
Interface type -
None
Rated control supply voltage magnet drive at DC -
24 Volt
Width sensor -
46.3 Millimetre
With escape unlocking -
Height of sensor -
74.5 Millimetre
Length of sensor -
555 Millimetre
Ambient temperature during operating -
-20 Degrees celsius
Clamping force -
2000 Newton
Number of contacts as normally closed contact -
6
Number of contacts as normally open contact -
5
Type of guard locking -
Bistable
