5SM37465

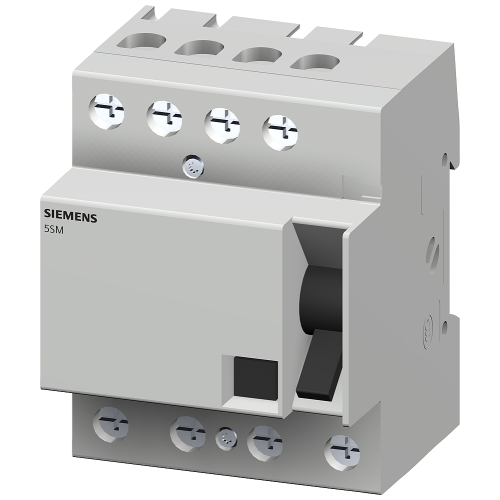

Residual current operated circuit breaker, 4-pole, type B, selective, In: 63 A, 500 mA, Un AC: 400 V

Manufacturer's No: 5SM3746-5     Manufacturer: Siemens
Residual current operated circuit breaker, 4-pole, type B, selective, In: 63 A, 500 mA, Un AC: 400 V

View 3D

Availability Back Order

POA

This product has been superseded by

5SV37465

Please check compatibility before purchasing.

  • Residual current operated circuit breaker
  • 4-pole, type B, selective
  • Rated current: 63 A
  • Sensitivity: 500 mA
  • Rated voltage: 400 V AC
  • End of product lifecycle: 27/01/23
  • Successor model: 5SV3746-5


Product

Manufacturer Material ID -
5SM3746-5
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated insulation voltage Ui -
- Volt
Pollution degree -
-
Rated impulse withstand voltage Uimp -
- Kilovolt
Mounting method -
DIN rail
Built-in depth -
70 Millimetre
Rated current -
63 Ampere
Rated voltage -
400 Volt
Number of poles -
4
Rated fault current -
500 Milliampere
Leakage current type -
B
Selective protection -
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
5 kiloampere
Width in number of modular spacings -
4
Frequency -
50 Hz
Degree of protection (IP) -
IP20
Connectable conductor cross section solid-core -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
1.5 Square millimetre
With interlocking device -
Ambient temperature during operating -
-25 Degrees celsius
Additional equipment possible -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

5SV37465

Please check compatibility before purchasing.
