769-151

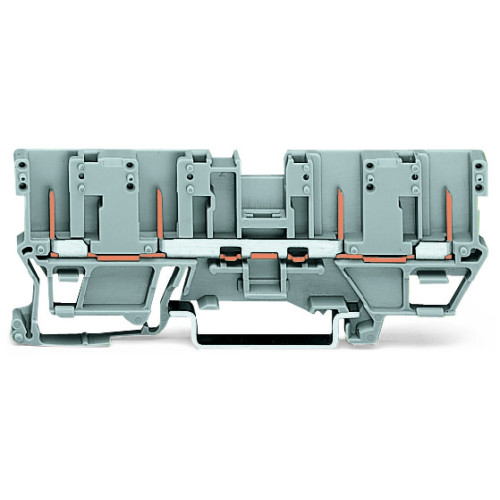

4-pin carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 769-151     Manufacturer: WAGO
4-pin carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£1.48
  • 4-pin carrier terminal block
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Color: gray

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.34
Available to order

Push-in type wire jumper, insulated, 60 mm long, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-125
Price £4.80
Available to order

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-126
Price £4.84
Available to order

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-127
Price £5.00
Available to order

Staggered jumper, from 1 to 6, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-456
Price £1.33
Available to order

Test plug adapter, 5 mm wide, for test plug (2.3 mm Ø), gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-404
Price £1.67
Available to order

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-409
Price £0.66
Available to order

Staggered jumper, from 1 to 3, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-453
Price £0.82
Available to order

Staggered jumper, from 1 to 4, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-454
Price £1.02
Available to order

Staggered jumper, from 1 to 5, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-455
Price £1.14
Available to order

Spacer module, modular, bridging commoned terminal blocks, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-419
Price POA
Available to order

End and intermediate plate, 1.1 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-301
Price £0.48
Available to order

End and intermediate plate, 1.1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-302
Price £0.48
Available to order

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-123
Price £4.97
Available to order

Test plug module, modular, suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-418
Price £1.40
Available to order

Pin cover, with marker slot for miniature WSB, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-438
Price £0.27
Available to order

Pin cover, with marker slot for miniature WSB, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-439
Price POA
Available to order

Staggered jumper, from 1 to 7, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-457
Price £1.59
Available to order

Staggered jumper, from 1 to 8, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-458
Price £1.84
Available to order


Product

Manufacturer Material ID -
769-151
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
87.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Depth -
28.5 Millimetre
Height -
87.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
4
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£1.48
