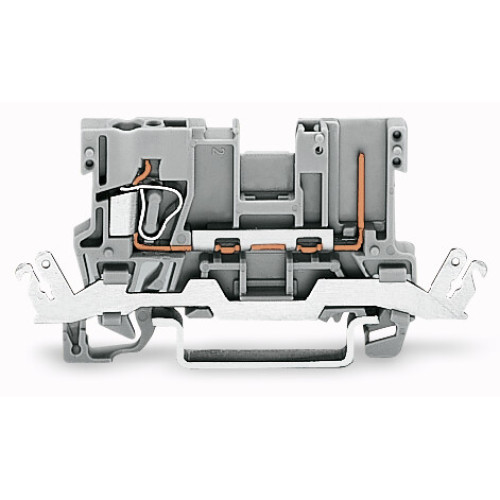

769-231

1-conductor/1-pin carrier terminal block, with shield contact, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 769-231     Manufacturer: WAGO
1-conductor/1-pin carrier terminal block, with shield contact, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.51
  • Terminal block for DIN-rail mounting
  • 1-conductor/1-pin design with shield contact
  • Accommodates wire size up to 4 mm²
  • Features CAGE CLAMP® technology
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Color: Gray

Accessories

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Ferrule, Sleeve for 0.75 mm² / AWG 20, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-102
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / AWG 22, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-101
Price £0.02
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-103
Price £0.02
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-104
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-201
Price £0.05
On Request


Product

Manufacturer Material ID -
769-231
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Length -
71.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
28.5 Millimetre
Height -
71.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
250 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre
