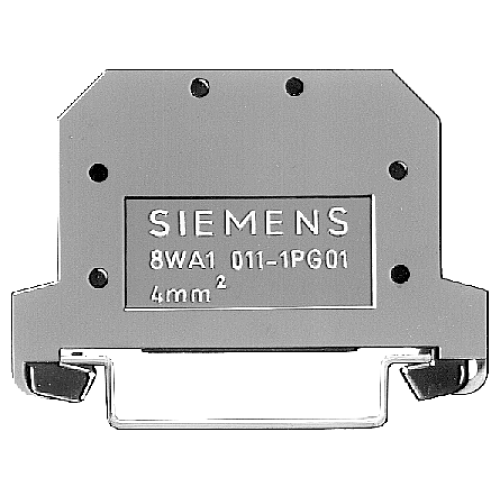

8WA10111PG00

PE terminal 2 screw-type terminal green/yellow, 7.2 mm, size 4

Manufacturer's No: 8WA1011-1PG00     Manufacturer: Siemens
PE terminal 2 screw-type terminal green/yellow, 7.2 mm, size 4

Availability Back Order

POA

This product has been superseded by

8WH10000CG07

Please check compatibility before purchasing.

  • Screw-type terminal
  • PE terminal 2
  • Green/yellow color
  • Size 4
  • Terminal width: 7.2 mm
  • Discontinued since: 09/10/23
  • Successor: 8WH10000CG07

Follow-up article



Product

Manufacturer Material ID -
8WA1011-1PG00
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
51 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
7.2 Millimetre
Height at lowest possible mounting height -
30 Millimetre
Connection position -
Sideways
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
4 Square millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
4 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
1
Number of levels -
2
Operating temperature -
-25 Degrees celsius
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10000CG07

Please check compatibility before purchasing.
