542109

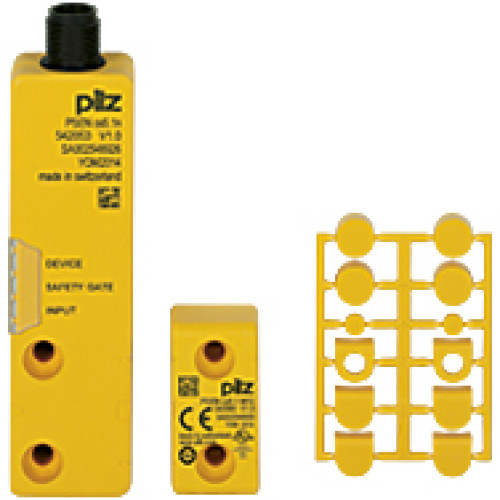

RFiD safety switch 2 safe SC outputs, 8-pin M12 male connector,4 actuation directions, support for SDD, IP67, switching distance(a

Manufacturer's No: PSEN cs6.1 M12/8/PSEN cs6.1 M12 1unit     Manufacturer: Pilz
RFiD safety switch 2 safe SC outputs, 8-pin M12 male connector,4 actuation directions, support for SDD, IP67, switching distance(actuator at square marking): 11 mm, Sao = 8 mm, Sar = 20 mm, PU =1 piec

Availability On Request

£120.26
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector
  • 4 actuation directions
  • Support for SDD
  • IP67 rated
  • Switching distance (actuator at square marking): 11 mm
  • Sao (Safe Operating Distance): 8 mm
  • Sar (Safe Release Distance): 20 mm
  • Package includes 1 piece fully coded switch with actuator

Accessories



Product

Manufacturer Material ID -
PSEN cs6.1 M12/8/PSEN cs6.1 M12 1unit
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Mounting method -
UN
Width -
- Millimetre
Height -
- Millimetre
Depth -
- Millimetre
Switching current -
- Ampere
Number of channels -
-
Power consumption -
- Watt
Switching power -
- Voltampere
Type of power supply -
UN
Operation temperature -
- Degrees celsius
Switching voltage -
- Volt
Switching frequency -
- Hertz
Degree of protection (IP) -
UN
Number of inputs, according to NAMUR -
-
Number of inputs, potential-free -
-
Number of output circuits opto-coupler -
-
Number of output circuits relays normally open contact -
-
Number of output circuits relays change-over contact -
-
Number of output circuits transistor antivalent -
-
Number of output circuits transistor npn -
-
Number of output circuits transistor pnp -
-
Number of output circuits transistor potential-free -
-
Rated operation frequency -
- Hertz
Rated supply voltage at AC -
- Volt
Rated supply voltage at DC -
- Volt
Primary voltage tolerance -
- Percentage
Construction type of device -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Screw connection
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
26.4 Millimetre
Length of sensor -
19 Millimetre
Width sensor -
101.6 Millimetre
Pilz

Availability On Request

£120.26
