Overview

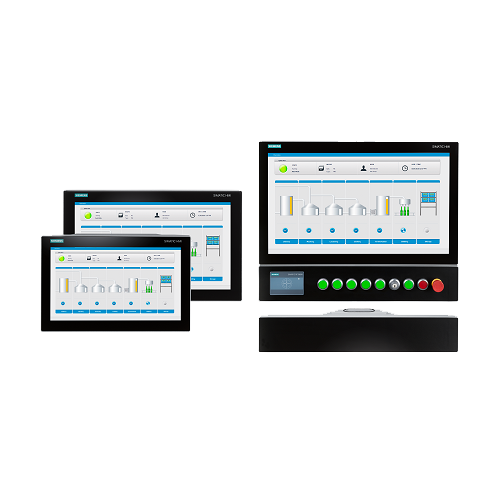

SIMATIC HMI Comfort PRO: The new Comfort Panel PRO with all-round IP65 protection – powerful, ready-to-use, and can be installed directly at the machine

SIMATIC HMI Comfort Panels PRO with 12″, 15″, 19″ and 22″ widescreen format expand the Comfort Panel portfolio to include devices with glass fronts.

The rugged aluminum housing enables it to be used directly at the machine and guarantees durability, even in harsh and extreme operating environments.

Highlights:

  • All-round IP65 protection
  • Comfort Panel functionality and performance
  • Rugged, industrial 12″, 15″, 19″ and 22″ widescreen displays
  • Slim, modern design
  • Can be adapted to support arm system of various manufacturers
  • Integration of operator controls with Extension Units
  • High degree of investment security
  • Fast integration capability

12″, 15″, 19″ and 22″ SIMATIC HMI Comfort Panels PRO are available in three different versions, depending on the application:

  • For support arm (extendable, round tube): mounting by means of standard 48 mm round tube or Siemens flange adapter
  • For support arm (not extendable, flange on top): mounting by means of basic adapter and flange on top, included in scope of delivery
  • For pedestal (extendable, flange below): mounting by means of basic adapter and flange below, included in scope of delivery

For more information, please go to:

http://siemens.com/simatic-hmi-pro

System components for fully enclosed IP65 devices

System components for PRO devices are only suitable for SIMATIC HMI/IPC PRO devices.

In combination with the SIMATIC HMI PRO basic devices, these components enable easy adaptation to individual customer requirements for operator control and monitoring at the machine level, as well as offering a versatile and attractive solution for visualization and automation without a control cabinet.

The following system components are available:

  • Fasteners
    • Adapter sets
    • Basic adapter
    • Flange mount
  • Extension Units 12″ – 22″ with operator controls
  • Extension components
    • Stainless steel keyboard
    • Tool and keyboard tray

For more detailed information about system components refer to “PC-based Automation” -> “Devices for special requirements” -> “System components”.

Benefits

  • Direct mounting on the machine – without a control cabinet
  • Enhancement of the machine by the modern, slim design
  • Compact design ideal for applications with little space available
  • Excellent industrial compatibility due to rugged construction, even when subjected to extreme vibration and shock
  • Intuitive operation and more space for visualization due to widescreen format, and greater resistance to corrosive cleaning agents and scratches thanks to capacitive glass front
  • The different mounting options offer complete flexibility when choosing make and model of the support arm
  • Standard connecting cables can be used for easy commissioning and maintenance
  • High investment protection thanks to guaranteed availability of spare parts
  • Excellent continuity of components for machine concepts with a long service life without any new engineering costs
  • Savings in time and costs due to service-friendly equipment construction
  • Integral component of Totally Integrated Automation (TIA)

Design

TP1200 Comfort PRO

  • 12.1″ widescreen TFT display, 1 280 x 800 resolution, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen (projective-capacitive)

TP1500 Comfort PRO

  • 15.6″ widescreen TFT display, 1 388 x 768 resolution, 16 million colors
  • 2 PROFINET (2 ports with integrated switches + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen (projective-capacitive)

TP1900 Comfort PRO

  • 18.5″ widescreen TFT display, 1 366 x 768 resolution, 16 million colors
  • 2 PROFINET (2 ports with integrated switches + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen (projective-capacitive)
  • Innovative successor to the Multi Panel MP 377 15″ Touch PRO

TP2200 Comfort PRO

  • 21.5″ widescreen TFT display, 1 920 x 1 080 resolution, 16 million colors
  • 2 PROFINET (2 ports with integrated switches + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen (projective-capacitive)

The new SIMATIC HMI Comfort PRO is a compact device with a high-quality aluminum housing.

Basic design

Operator control unit features: the operator control units are available in the following versions:

12″ (1 280 x 800)

  • Prepared for support arm without extension components (flange on top)
  • Prepared for pedestal/extension components (flange below)
  • Prepared for support arm and extension components (round tube connection)

15″ (1 366 x 768)

  • Prepared for support arm without extension components (flange on top)
  • Prepared for pedestal/extension components (flange below)
  • Prepared for support arm and extension components (round tube connection)

19″ (1 366 x 768)

  • Prepared for support arm without extension components (flange on top)
  • Prepared for pedestal/extension components (flange below)
  • Prepared for support arm and extension components (round tube connection)

22″ (1 920 x 1 080)

  • Prepared for support arm without extension components (flange on top)
  • Prepared for pedestal/extension components (flange below)
  • Prepared for support arm and extension components (round tube connection)

The integration of operator controls in the new Extension Units enables customers to implement a large variety of operating scenarios:

Example: Extension Unit equipped with operator controls

Version prepared for support arm without extension components (flange on top)

Version prepared for pedestal/extension components (flange below)

Version prepared for support arm and extension components (round tube connection)

Function

The functionality is identical to that of the corresponding Standard Panel.

In the case of the TP1500, the display diagonal has been increased from 15.4″ (1 280 x 800 Comfort built-in unit) to 15.6″ (1 366 x 768 Comfort PRO).

The complete functionality and all the details of the devices are thoroughly described in their corresponding manuals. A comprehensive online help resource is also available for direct support in the TIA Portal.

Integration

The SIMATIC HMI Comfort Panels can be connected to:

  • SIMATIC S7 controllers
  • Third-party controllers
    • Allen Bradley DF1, Allen Bradley EtherNet/IP
    • Modicon MODBUS RTU, Modicon MODBUS TCP/IP
    • Mitsubishi FX, Mitsubishi MC TCP/IP
    • Omron Hostlink/Multilink
  • OPC UA client or OPC DA server
  • Multi-protocol capability
  • http communication with other SIMATIC HMI systems
  • Over Ethernet (TCP/IP) to a higher-level PC, network printer

Note:

Further information can be found under “System interfaces”.

Technical specifications

Article number 6AV2124-0MC24-0AX0 6AV2124-0MC24-1AX0 6AV2124-0MC24-0BX0
SIMATIC HMI TP1200 Comfort Pro SIMATIC HMI TP1200 Comfort Pro SIMATIC HMI TP1200 Comfort Pro
General information
Product type designation TP1200 PRO TP1200 PRO TP1200 PRO
Display
Design of display TFT TFT TFT
Screen diagonal 12.1 in 12.1 in 12.1 in
Display width 261.1 mm 261.1 mm 261.1 mm
Display height 163.2 mm 163.2 mm 163.2 mm
Number of colors 16 777 216 16 777 216 16 777 216
Resolution (pixels)
● Horizontal image resolution 1 280 Pixel 1 280 Pixel 1 280 Pixel
● Vertical image resolution 800 Pixel 800 Pixel 800 Pixel
Backlighting
● MTBF backlighting (at 25 °C) 80 000 h 80 000 h 80 000 h
● Backlight dimmable Yes; LED, dimmable Yes; LED, dimmable Yes; LED, dimmable
Keyboard fonts
● Function keys
— Number of function keys 0 0 0
— Number of function keys with LEDs 0 0 0
● Keys with LED No No No
● System keys No No No
● Numeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes; Projective-capacitive Yes; Projective-capacitive Yes; Projective-capacitive
Expansions for operator control of the process
● Direct keys (touch buttons as S7 input I/O) 40 40 40
Installation type/mounting
Mounting Support arm Pedestal Support arm
Mounting position vertical vertical vertical
Mounting in portrait format possible No No No
maximum permissible angle of inclination without external ventilation 35° 35° 35°
Supply voltage
Type of supply voltage DC DC DC
Rated value (DC) 24 V 24 V 24 V
permissible range, lower limit (DC) 19.2 V 19.2 V 19.2 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V
Input current
Current consumption (rated value) 1.5 A 1.5 A 1.5 A
Starting current inrush I²t 0.5 A²·s 0.5 A²·s 0.5 A²·s
Power
Active power input, typ. 36 W 36 W 36 W
Processor
Processor type X86 X86 X86
Memory
Flash Yes Yes Yes
RAM Yes Yes Yes
Memory available for user data 12 Mbyte 12 Mbyte 12 Mbyte
Type of output
Info LED No No No
Power LED No No No
Error LED No No No
Acoustics
● Buzzer No No No
● Speaker Yes Yes Yes
Time of day
Clock
● Hardware clock (real-time) Yes Yes Yes
● Software clock Yes Yes Yes
● retentive Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks
● synchronizable Yes Yes Yes
Interfaces
Number of industrial Ethernet interfaces 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port
Number of RS 485 interfaces 1; RS 422 / 485 combined 1; RS 422 / 485 combined 1; RS 422 / 485 combined
Number of RS 422 interfaces 0; together with RS 485 0; together with RS 485 0; together with RS 485
Number of USB interfaces 2; USB 2.0 2; USB 2.0 2; USB 2.0
Number of SD card slots 2 2 2
With software interfaces No No No
Industrial Ethernet
● Industrial Ethernet status LED 3 3 3
● Number of ports of the integrated switch 2 2 2
Protocols
PROFINET Yes Yes Yes
Supports protocol for PROFINET IO Yes Yes Yes
IRT Yes Yes Yes
PROFIBUS Yes Yes Yes
MPI Yes Yes Yes
Protocols (Ethernet)
● TCP/IP Yes Yes Yes
● DHCP Yes Yes Yes
● SNMP Yes Yes Yes
● DCP Yes Yes Yes
● LLDP Yes Yes Yes
WEB characteristics
● HTTP Yes Yes Yes
● HTTPS Yes Yes Yes
● HTML Yes Yes Yes
● XML Yes Yes Yes
● CSS Yes Yes Yes
● Active X Yes Yes Yes
● JavaScript Yes Yes Yes
● Java VM No No No
Redundancy mode
● MRP Yes Yes Yes
Further protocols
● CAN No No No
● EtherNet/IP Yes Yes Yes
● MODBUS Yes Yes Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable Yes; S7 controller Yes; S7 controller Yes; S7 controller
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes Yes Yes
● Limit class B, for use in residential areas No No No
Degree and class of protection
IP (at the front) IP65 IP65 IP65
Enclosure Type 4 at the front Yes Yes Yes
Enclosure Type 4x at the front Yes Yes Yes
IP (rear) IP65 IP65 IP65
Standards, approvals, certificates
CE mark Yes Yes Yes
cULus Yes Yes Yes
RCM (formerly C-TICK) Yes Yes Yes
KC approval No; Available soon No; Available soon No; Available soon
EAC (formerly Gost-R) No; Available soon No; Available soon No; Available soon
Ambient conditions
Suited for indoor use Yes Yes Yes
Suited for outdoor use No No No
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min. 0 °C 0 °C 0 °C
— For vertical installation, max. 45 °C 45 °C 45 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min. 0 °C 0 °C 0 °C
— At maximum tilt angle, min. 40 °C 40 °C 40 °C
Ambient temperature during storage/transportation
● min. -20 °C -20 °C -20 °C
● max. 60 °C 60 °C 60 °C
Relative humidity
● Operation, max. 90 %; no condensation 90 %; no condensation 90 %; no condensation
Operating systems
proprietary No No No
pre-installed operating system
● Windows CE Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013
Configuration
Message indicator Yes Yes Yes
Alarm system (incl. buffer and acknowledgment) Yes Yes Yes
Process value display (output) Yes Yes Yes
Process value default (input) possible Yes Yes Yes
Recipe management Yes Yes Yes
Configuration software
● STEP 7 Basic (TIA Portal) No No No
● STEP 7 Professional (TIA Portal) No No No
● WinCC flexible Compact No No No
● WinCC flexible Standard No No No
● WinCC flexible Advanced No No No
● WinCC Basic (TIA Portal) No No No
● WinCC Comfort (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Advanced (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Professional (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
Languages
Online languages
● Number of online/runtime languages 32 32 32
Project languages
● Languages per project 32 32 32
Functionality under WinCC (TIA Portal)
Libraries Yes Yes Yes
Applications/options
● Web browser Yes Yes Yes
● Pocket Word Yes Yes Yes
● Pocket Excel Yes Yes Yes
● PDF Viewer Yes Yes Yes
● Media Player Yes Yes Yes
● SIMATIC WinCC Sm@rtServer Yes Yes Yes
● SIMATIC WinCC Audit Yes Yes Yes
Number of Visual Basic Scripts Yes Yes Yes
Task planner
● time-controlled Yes Yes Yes
● task-controlled Yes Yes Yes
Help system
● Number of characters per info text 70 70 70
Message system
● Number of alarm classes 32 32 32
● Bit messages
— Number of bit messages 4 000 4 000 4 000
● Analog messages
— Number of analog messages 200 200 200
● S7 alarm number procedure Yes Yes Yes
● System messages HMI Yes Yes Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes Yes Yes
● Number of characters per message 80 80 80
● Number of process values per message 8 8 8
● Acknowledgment groups Yes Yes Yes
● Message indicator Yes Yes Yes
● Message buffer
— Number of entries 1 024 1 024 1 024
— Circulating buffer Yes Yes Yes
— retentive Yes Yes Yes
— maintenance-free Yes Yes Yes
Recipe management
● Number of recipes 300 300 300
● Data records per recipe 500 500 500
● Entries per data record 1 000 1 000 1 000
● Size of internal recipe memory 2 Mbyte 2 Mbyte 2 Mbyte
● Recipe memory expandable Yes Yes Yes
Variables
● Number of variables per device 2 048 2 048 2 048
● Number of variables per screen 400 400 400
● Limit values Yes Yes Yes
● Multiplexing Yes Yes Yes
● Structures Yes Yes Yes
● Arrays Yes Yes Yes
Images
● Number of configurable images 500 500 500
● Permanent window/default Yes Yes Yes
● Global image Yes Yes Yes
● Pop-up images Yes Yes Yes
● Slide-in images Yes Yes Yes
● Image selection by PLC Yes Yes Yes
● Image number in the PLC Yes Yes Yes
Image objects
● Number of objects per image 400 400 400
● Text fields Yes Yes Yes
● I/O fields Yes Yes Yes
● Graphic I/O fields (graphics list) Yes Yes Yes
● Symbolic I/O fields (text list) Yes Yes Yes
● Date/time fields Yes Yes Yes
● Switches Yes Yes Yes
● Buttons Yes Yes Yes
● Graphic display Yes Yes Yes
● Icons Yes Yes Yes
● Geometric objects Yes Yes Yes
Complex image objects
● Number of complex objects per screen 20 20 20
● Alarm view Yes Yes Yes
● Trend view Yes Yes Yes
● User view Yes Yes Yes
● Status/control Yes Yes Yes
● Sm@rtClient view Yes Yes Yes
● Recipe view Yes Yes Yes
● f(x) trend view Yes Yes Yes
● System diagnostics view Yes Yes Yes
● Media Player Yes Yes Yes
● HTML browser Yes Yes Yes
● PDF display Yes Yes Yes
● IP camera display Yes Yes Yes
● Bar graphs Yes Yes Yes
● Sliders Yes Yes Yes
● Pointer instruments Yes Yes Yes
● Analog/digital clock Yes Yes Yes
Lists
● Number of text lists per project 500 500 500
● Number of entries per text list 500 500 500
● Number of graphics lists per project 500 500 500
● Number of entries per graphics list 500 500 500
Archiving
● Number of archives per device 50 50 50
● Number of entries per archive 20 000 20 000 20 000
● Message archive Yes Yes Yes
● Process value archive Yes Yes Yes
● Archiving methods
— Sequential archive Yes Yes Yes
— Short-term archive Yes Yes Yes
● Memory location
— Memory card Yes Yes Yes
— USB memory Yes Yes Yes
— Ethernet Yes Yes Yes
● Data storage format
— CSV Yes Yes Yes
— TXT Yes Yes Yes
— RDB Yes Yes Yes
Security
● Number of user groups 50 50 50
● Number of user rights 32 32 32
● Number of users 50 50 50
● Password export/import Yes Yes Yes
● SIMATIC Logon Yes Yes Yes
Logging through printer
● Alarms Yes Yes Yes
● Report (shift log) Yes Yes Yes
● Hardcopy Yes Yes Yes
● Electronic print to file Yes; PDF, HTML Yes; PDF, HTML Yes; PDF, HTML
Character sets
● Keyboard fonts
— US English Yes Yes Yes
Transfer (upload/download)
● MPI/PROFIBUS DP Yes Yes Yes
● USB Yes Yes Yes
● Ethernet Yes Yes Yes
● using external storage medium Yes Yes Yes
Process coupling
● S7-1200 Yes Yes Yes
● S7-1500 Yes Yes Yes
● S7-200 Yes Yes Yes
● S7-300/400 Yes Yes Yes
● LOGO! Yes Yes Yes
● WinAC Yes Yes Yes
● SINUMERIK Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher
● SIMOTION Yes Yes Yes
● Allen Bradley (EtherNet/IP) Yes Yes Yes
● Allen Bradley (DF1) Yes Yes Yes
● Mitsubishi (MC TCP/IP) Yes Yes Yes
● Mitsubishi (FX) Yes Yes Yes
● OMRON (FINS TCP) No No No
● OMRON (LINK/Multilink) Yes Yes Yes
● Modicon (Modbus TCP/IP) Yes Yes Yes
● Modicon (Modbus) Yes Yes Yes
● OPC UA Client Yes Yes Yes
● OPC UA Server Yes Yes Yes
Service tools/configuration aids
● Backup/Restore manually Yes Yes Yes
● Backup/Restore automatically Yes Yes Yes
● Simulation Yes Yes Yes
● Device switchover Yes Yes Yes
Peripherals/Options
Peripherals
● Printer Yes Yes Yes
● SIMATIC HMI MM memory card: Multi Media Card Yes; Up to 128 MB Yes; Up to 128 MB Yes; Up to 128 MB
● SIMATIC HMI SD memory card: Secure Digital memory card Yes; Up to 2 GB Yes; Up to 2 GB Yes; Up to 2 GB
● SIMATIC HMI CF memory card Compact Flash Card No No No
● USB memory Yes Yes Yes
● SIMATIC IPC USB Flashdrive (USB stick) Yes; Up to 16 GB Yes; Up to 16 GB Yes; Up to 16 GB
● SIMATIC HMI USB stick Yes; Up to 8 GB Yes; Up to 8 GB Yes; Up to 8 GB
● Network camera Yes Yes Yes
Mechanics/material
Enclosure material (front)
● Plastic No No No
● Aluminum Yes Yes Yes
● Stainless steel No No No
Dimensions
Width of the housing front 313 mm 313 mm 313 mm
Height of housing front 226 mm; Without basic adapter 226 mm; Without basic adapter 226 mm; Without basic adapter
Overall depth 101 mm; Without basic adapter 101 mm; Without basic adapter 101 mm; Without basic adapter
Weights
Weight without packaging 4.9 kg 4.9 kg 4.5 kg

Article number 6AV2124-0QC24-0AX0 6AV2124-0QC24-0BX0 6AV2124-0QC24-1AX0
SIMATIC HMI TP1500 Comfort PRO SIMATIC HMI TP1500 Comfort PRO SIMATIC HMI TP1500 Comfort PRO
General information
Product type designation TP1500 Comfort PRO TP1500 Comfort PRO TP1500 Comfort PRO
Display
Design of display TFT TFT TFT
Screen diagonal 15.6 in 15.6 in 15.6 in
Display width 344.2 mm 344.2 mm 344.2 mm
Display height 193.5 mm 193.5 mm 193.5 mm
Number of colors 16 777 216 16 777 216 16 777 216
Resolution (pixels)
● Horizontal image resolution 1 366 Pixel 1 366 Pixel 1 366 Pixel
● Vertical image resolution 768 Pixel 768 Pixel 768 Pixel
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h 50 000 h 50 000 h
● Backlight dimmable Yes; 0-100 % Yes; 0-100 % Yes; 0-100 %
Keyboard fonts
● Function keys
— Number of function keys 0 0 0
— Number of function keys with LEDs 0 0 0
● Keys with LED No No No
● System keys No No No
● Numeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes; Projective-capacitive Yes; Projective-capacitive Yes; Projective-capacitive
Expansions for operator control of the process
● Direct keys (touch buttons as S7 input I/O) 40 40 40
Installation type/mounting
Mounting Support arm Support arm Pedestal
Mounting position vertical vertical vertical
Mounting in portrait format possible No No No
maximum permissible angle of inclination without external ventilation 35° 35° 35°
Supply voltage
Type of supply voltage DC DC DC
Rated value (DC) 24 V 24 V 24 V
permissible range, lower limit (DC) 19.2 V 19.2 V 19.2 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V
Input current
Current consumption (rated value) 1.5 A 1.5 A 1.5 A
Starting current inrush I²t 0.5 A²·s 0.5 A²·s 0.5 A²·s
Power
Active power input, typ. 36 W 36 W 36 W
Processor
Processor type X86 X86 X86
Memory
Flash Yes Yes Yes
RAM Yes Yes Yes
Memory available for user data 24 Mbyte 24 Mbyte 24 Mbyte
Type of output
Info LED No No No
Power LED No No No
Error LED No No No
Acoustics
● Buzzer No No No
● Speaker Yes Yes Yes
Time of day
Clock
● Hardware clock (real-time) Yes Yes Yes
● Software clock Yes Yes Yes
● retentive Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks
● synchronizable Yes Yes Yes
Interfaces
Number of industrial Ethernet interfaces 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port
Number of RS 485 interfaces 1; RS 422 / 485 combined 1; RS 422 / 485 combined 1; RS 422 / 485 combined
Number of RS 422 interfaces 0; together with RS 485 0; together with RS 485 0; together with RS 485
Number of RS 232 interfaces 0 0 0
Number of USB interfaces 2; USB 2.0 2; USB 2.0 2; USB 2.0
Number of SD card slots 2 2 2
With software interfaces No No No
Industrial Ethernet
● Industrial Ethernet status LED 3 3 3
● Number of ports of the integrated switch 2 2 2
Protocols
PROFINET Yes Yes Yes
Supports protocol for PROFINET IO Yes Yes Yes
IRT Yes Yes Yes
PROFIBUS Yes Yes Yes
MPI Yes Yes Yes
Protocols (Ethernet)
● TCP/IP Yes Yes Yes
● DHCP Yes Yes Yes
● SNMP Yes Yes Yes
● DCP Yes Yes Yes
● LLDP Yes Yes Yes
WEB characteristics
● HTTP Yes Yes Yes
● HTTPS Yes Yes Yes
● HTML Yes Yes Yes
● XML Yes Yes Yes
● CSS Yes Yes Yes
● Active X Yes Yes Yes
● JavaScript Yes Yes Yes
● Java VM No No No
Redundancy mode
● MRP Yes Yes Yes
Further protocols
● CAN No No No
● EtherNet/IP Yes Yes Yes
● MODBUS Yes Yes Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable Yes; S7 controller Yes; S7 controller Yes; S7 controller
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes Yes Yes
● Limit class B, for use in residential areas No No No
Degree and class of protection
IP (at the front) IP65 IP65 IP65
Enclosure Type 4 at the front Yes Yes Yes
Enclosure Type 4x at the front Yes Yes Yes
IP (rear) IP65 IP65 IP65
Standards, approvals, certificates
CE mark Yes Yes Yes
cULus Yes Yes Yes
RCM (formerly C-TICK) Yes Yes Yes
KC approval No; Available soon No; Available soon No; Available soon
EAC (formerly Gost-R) No; Available soon No; Available soon No; Available soon
Ambient conditions
Suited for indoor use Yes Yes Yes
Suited for outdoor use No No No
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min. 0 °C 0 °C 0 °C
— For vertical installation, max. 45 °C 45 °C 45 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min. 0 °C 0 °C 0 °C
— At maximum tilt angle, min. 40 °C 40 °C 40 °C
Ambient temperature during storage/transportation
● min. -20 °C -20 °C -20 °C
● max. 60 °C 60 °C 60 °C
Relative humidity
● Operation, max. 90 %; no condensation 90 %; no condensation 90 %; no condensation
Operating systems
proprietary No No No
pre-installed operating system
● Windows CE Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013
Configuration
Message indicator Yes Yes Yes
Alarm system (incl. buffer and acknowledgment) Yes Yes Yes
Process value display (output) Yes Yes Yes
Process value default (input) possible Yes Yes Yes
Recipe management Yes Yes Yes
Configuration software
● STEP 7 Basic (TIA Portal) No No No
● STEP 7 Professional (TIA Portal) No No No
● WinCC flexible Compact No No No
● WinCC flexible Standard No No No
● WinCC flexible Advanced No No No
● WinCC Basic (TIA Portal) No No No
● WinCC Comfort (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Advanced (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Professional (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
Languages
Online languages
● Number of online/runtime languages 32 32 32
Project languages
● Languages per project 32 32 32
Functionality under WinCC (TIA Portal)
Libraries Yes Yes Yes
Applications/options
● Web browser Yes Yes Yes
● Pocket Word Yes Yes Yes
● Pocket Excel Yes Yes Yes
● PDF Viewer Yes Yes Yes
● Media Player Yes Yes Yes
● SIMATIC WinCC Sm@rtServer Yes Yes Yes
● SIMATIC WinCC Audit Yes Yes Yes
Number of Visual Basic Scripts Yes Yes Yes
Task planner
● time-controlled Yes Yes Yes
● task-controlled Yes Yes Yes
Help system
● Number of characters per info text 320 320 320
Message system
● Number of alarm classes 32 32 32
● Bit messages
— Number of bit messages 6 000 6 000 6 000
● Analog messages
— Number of analog messages 200 200 200
● S7 alarm number procedure Yes Yes Yes
● System messages HMI Yes Yes Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes Yes Yes
● Number of characters per message 80 80 80
● Number of process values per message 8 8 8
● Acknowledgment groups Yes Yes Yes
● Message indicator Yes Yes Yes
● Message buffer
— Number of entries 1 024 1 024 1 024
— Circulating buffer Yes Yes Yes
— retentive Yes Yes Yes
— maintenance-free Yes Yes Yes
Recipe management
● Number of recipes 500 500 500
● Data records per recipe 1 000 1 000 1 000
● Entries per data record 2 000 2 000 2 000
● Size of internal recipe memory 4 Mbyte 4 Mbyte 4 Mbyte
● Recipe memory expandable Yes Yes Yes
Variables
● Number of variables per device 4 096 4 096 4 096
● Number of variables per screen 400 400 400
● Limit values Yes Yes Yes
● Multiplexing Yes Yes Yes
● Structures Yes Yes Yes
● Arrays Yes Yes Yes
Images
● Number of configurable images 750 750 750
● Permanent window/default Yes Yes Yes
● Global image Yes Yes Yes
● Pop-up images Yes Yes Yes
● Slide-in images Yes Yes Yes
● Image selection by PLC Yes Yes Yes
● Image number in the PLC Yes Yes Yes
Image objects
● Number of objects per image 600 600 600
● Text fields Yes Yes Yes
● I/O fields Yes Yes Yes
● Graphic I/O fields (graphics list) Yes Yes Yes
● Symbolic I/O fields (text list) Yes Yes Yes
● Date/time fields Yes Yes Yes
● Switches Yes Yes Yes
● Buttons Yes Yes Yes
● Graphic display Yes Yes Yes
● Icons Yes Yes Yes
● Geometric objects Yes Yes Yes
Complex image objects
● Number of complex objects per screen 40 40 40
● Alarm view Yes Yes Yes
● Trend view Yes Yes Yes
● User view Yes Yes Yes
● Status/control Yes Yes Yes
● Sm@rtClient view Yes Yes Yes
● Recipe view Yes Yes Yes
● f(x) trend view Yes Yes Yes
● System diagnostics view Yes Yes Yes
● Media Player Yes Yes Yes
● HTML browser Yes Yes Yes
● PDF display Yes Yes Yes
● IP camera display Yes Yes Yes
● Bar graphs Yes Yes Yes
● Sliders Yes Yes Yes
● Pointer instruments Yes Yes Yes
● Analog/digital clock Yes Yes Yes
Lists
● Number of text lists per project 500 500 500
● Number of entries per text list 500 500 500
● Number of graphics lists per project 500 500 500
● Number of entries per graphics list 500 500 500
Archiving
● Number of archives per device 50 50 50
● Number of entries per archive 50 000 50 000 50 000
● Message archive Yes Yes Yes
● Process value archive Yes Yes Yes
● Archiving methods
— Sequential archive Yes Yes Yes
— Short-term archive Yes Yes Yes
● Memory location
— Memory card Yes Yes Yes
— USB memory Yes Yes Yes
— Ethernet Yes Yes Yes
● Data storage format
— CSV Yes Yes Yes
— TXT Yes Yes Yes
— RDB Yes Yes Yes
Security
● Number of user groups 50 50 50
● Number of user rights 32 32 32
● Number of users 50 50 50
● Password export/import Yes Yes Yes
● SIMATIC Logon Yes Yes Yes
Logging through printer
● Alarms Yes Yes Yes
● Report (shift log) Yes Yes Yes
● Hardcopy Yes Yes Yes
● Electronic print to file Yes; PDF, HTML Yes; PDF, HTML Yes; PDF, HTML
Character sets
● Keyboard fonts
— US English Yes Yes Yes
Transfer (upload/download)
● MPI/PROFIBUS DP Yes Yes Yes
● USB Yes Yes Yes
● Ethernet Yes Yes Yes
● using external storage medium Yes Yes Yes
Process coupling
● S7-1200 Yes Yes Yes
● S7-1500 Yes Yes Yes
● S7-200 Yes Yes Yes
● S7-300/400 Yes Yes Yes
● LOGO! Yes Yes Yes
● WinAC Yes Yes Yes
● SINUMERIK Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher
● SIMOTION Yes Yes Yes
● Allen Bradley (EtherNet/IP) Yes Yes Yes
● Allen Bradley (DF1) Yes Yes Yes
● Mitsubishi (MC TCP/IP) Yes Yes Yes
● Mitsubishi (FX) Yes Yes Yes
● OMRON (FINS TCP) No No No
● OMRON (LINK/Multilink) Yes Yes Yes
● Modicon (Modbus TCP/IP) Yes Yes Yes
● Modicon (Modbus) Yes Yes Yes
● OPC UA Client Yes Yes Yes
● OPC UA Server Yes Yes Yes
Service tools/configuration aids
● Backup/Restore manually Yes Yes Yes
● Backup/Restore automatically Yes Yes Yes
● Simulation Yes Yes Yes
● Device switchover Yes Yes Yes
Peripherals/Options
Peripherals
● Printer Yes Yes Yes
● SIMATIC HMI MM memory card: Multi Media Card Yes; Up to 128 MB Yes; Up to 128 MB Yes; Up to 128 MB
● SIMATIC HMI SD memory card: Secure Digital memory card Yes; Up to 2 GB Yes; Up to 2 GB Yes; Up to 2 GB
● SIMATIC HMI CF memory card Compact Flash Card No No No
● USB memory Yes Yes Yes
● SIMATIC IPC USB Flashdrive (USB stick) Yes; Up to 16 GB Yes; Up to 16 GB Yes; Up to 16 GB
● SIMATIC HMI USB stick Yes; Up to 8 GB Yes; Up to 8 GB Yes; Up to 8 GB
● Network camera Yes Yes Yes
Mechanics/material
Enclosure material (front)
● Plastic No No No
● Aluminum Yes Yes Yes
● Stainless steel No No No
Dimensions
Width of the housing front 396 mm 396 mm 396 mm
Height of housing front 256 mm; Without basic adapter 256 mm; Without basic adapter 256 mm; Without basic adapter
Overall depth 101 mm; Without basic adapter 101 mm; Without basic adapter 101 mm; Without basic adapter
Weights
Weight without packaging 6.3 kg 6.3 kg 6.3 kg

Article number 6AV2124-0UC24-0AX0 6AV2124-0UC24-0BX0 6AV2124-0UC24-1AX0
SIMATIC HMI TP1900 Comfort PRO SIMATIC HMI TP1900 Comfort PRO SIMATIC HMI TP1900 Comfort PRO
General information
Product type designation TP1900 Comfort PRO TP1900 Comfort PRO TP1900 Comfort PRO
Display
Design of display TFT TFT TFT
Screen diagonal 18.5 in 18.5 in 18.5 in
Display width 409.8 mm 409.8 mm 409.8 mm
Display height 230.4 mm 230.4 mm 230.4 mm
Number of colors 16 777 216 16 777 216 16 777 216
Resolution (pixels)
● Horizontal image resolution 1 366 Pixel 1 366 Pixel 1 366 Pixel
● Vertical image resolution 768 Pixel 768 Pixel 768 Pixel
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h 50 000 h 50 000 h
● Backlight dimmable Yes; 0-100 % Yes; 0-100 % Yes; 0-100 %
Keyboard fonts
● Function keys
— Number of function keys 0 0 0
— Number of function keys with LEDs 0 0 0
● Keys with LED No No No
● System keys No No No
● Numeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes; Projective-capacitive Yes; Projective-capacitive Yes; Projective-capacitive
Expansions for operator control of the process
● Direct keys (touch buttons as S7 input I/O) 40 40 40
Installation type/mounting
Mounting Support arm Support arm Pedestal
Mounting position vertical vertical vertical
Mounting in portrait format possible No No No
maximum permissible angle of inclination without external ventilation 35° 35° 35°
Supply voltage
Type of supply voltage DC DC DC
Rated value (DC) 24 V 24 V 24 V
permissible range, lower limit (DC) 19.2 V 19.2 V 19.2 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V
Input current
Current consumption (rated value) 1.5 A 1.5 A 1.5 A
Starting current inrush I²t 0.5 A²·s 0.5 A²·s 0.5 A²·s
Power
Active power input, typ. 36 W 36 W 36 W
Processor
Processor type X86 X86 X86
Memory
Flash Yes Yes Yes
RAM Yes Yes Yes
Memory available for user data 24 Mbyte 24 Mbyte 24 Mbyte
Type of output
Info LED No No No
Power LED No No No
Error LED No No No
Acoustics
● Buzzer No No No
● Speaker Yes Yes Yes
Time of day
Clock
● Hardware clock (real-time) Yes Yes Yes
● Software clock Yes Yes Yes
● retentive Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks
● synchronizable Yes Yes Yes
Interfaces
Number of industrial Ethernet interfaces 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port
Number of RS 485 interfaces 1; RS 422 / 485 combined 1; RS 422 / 485 combined 1; RS 422 / 485 combined
Number of RS 422 interfaces 0; together with RS 485 0; together with RS 485 0; together with RS 485
Number of RS 232 interfaces 0 0 0
Number of USB interfaces 2; USB 2.0 2; USB 2.0 2; USB 2.0
Number of 20 mA interfaces (TTY) 0 0 0
Number of parallel interfaces 0 0 0
Number of other interfaces 0 0 0
Number of SD card slots 2 2 2
With software interfaces No No No
Industrial Ethernet
● Industrial Ethernet status LED 3 3 3
● Number of ports of the integrated switch 2 2 2
Protocols
PROFINET Yes Yes Yes
Supports protocol for PROFINET IO Yes Yes Yes
IRT Yes Yes Yes
PROFIBUS Yes Yes Yes
MPI Yes Yes Yes
Protocols (Ethernet)
● TCP/IP Yes Yes Yes
● DHCP Yes Yes Yes
● SNMP Yes Yes Yes
● DCP Yes Yes Yes
● LLDP Yes Yes Yes
WEB characteristics
● HTTP Yes Yes Yes
● HTTPS Yes Yes Yes
● HTML Yes Yes Yes
● XML Yes Yes Yes
● CSS Yes Yes Yes
● Active X Yes Yes Yes
● JavaScript Yes Yes Yes
● Java VM No No No
Redundancy mode
● MRP Yes Yes Yes
Further protocols
● CAN No No No
● EtherNet/IP Yes Yes Yes
● MODBUS Yes Yes Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable Yes; S7 controller Yes; S7 controller Yes; S7 controller
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes Yes Yes
● Limit class B, for use in residential areas No No No
Degree and class of protection
IP (at the front) IP65 IP65 IP65
Enclosure Type 4 at the front Yes Yes Yes
Enclosure Type 4x at the front Yes Yes Yes
IP (rear) IP65 IP65 IP65
Standards, approvals, certificates
CE mark Yes Yes Yes
cULus Yes Yes Yes
RCM (formerly C-TICK) Yes Yes Yes
KC approval No; Available soon No; Available soon No; Available soon
EAC (formerly Gost-R) No; Available soon No; Available soon No; Available soon
Ambient conditions
Suited for indoor use Yes Yes Yes
Suited for outdoor use No No No
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min. 0 °C 0 °C 0 °C
— For vertical installation, max. 45 °C 45 °C 45 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min. 0 °C 0 °C 0 °C
— At maximum tilt angle, min. 40 °C 40 °C 40 °C
Ambient temperature during storage/transportation
● min. -20 °C -20 °C -20 °C
● max. 60 °C 60 °C 60 °C
Relative humidity
● Operation, max. 90 %; no condensation 90 %; no condensation 90 %; no condensation
Operating systems
proprietary No No No
pre-installed operating system
● Windows CE Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013
Configuration
Message indicator Yes Yes Yes
Alarm system (incl. buffer and acknowledgment) Yes Yes Yes
Process value display (output) Yes Yes Yes
Process value default (input) possible Yes Yes Yes
Recipe management Yes Yes Yes
Configuration software
● STEP 7 Basic (TIA Portal) No No No
● STEP 7 Professional (TIA Portal) No No No
● WinCC flexible Compact No No No
● WinCC flexible Standard No No No
● WinCC flexible Advanced No No No
● WinCC Basic (TIA Portal) No No No
● WinCC Comfort (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Advanced (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Professional (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
Languages
Online languages
● Number of online/runtime languages 32 32 32
Project languages
● Languages per project 32 32 32
Functionality under WinCC (TIA Portal)
Libraries Yes Yes Yes
Applications/options
● Web browser Yes Yes Yes
● Pocket Word Yes Yes Yes
● Pocket Excel Yes Yes Yes
● PDF Viewer Yes Yes Yes
● Media Player Yes Yes Yes
● SIMATIC WinCC Sm@rtServer Yes Yes Yes
● SIMATIC WinCC Audit Yes Yes Yes
Number of Visual Basic Scripts Yes Yes Yes
Task planner
● time-controlled Yes Yes Yes
● task-controlled Yes Yes Yes
Help system
● Number of characters per info text 320 320 320
Message system
● Number of alarm classes 32 32 32
● Bit messages
— Number of bit messages 6 000 6 000 6 000
● Analog messages
— Number of analog messages 200 200 200
● S7 alarm number procedure Yes Yes Yes
● System messages HMI Yes Yes Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes Yes Yes
● Number of characters per message 80 80 80
● Number of process values per message 8 8 8
● Acknowledgment groups Yes Yes Yes
● Message indicator Yes Yes Yes
● Message buffer
— Number of entries 1 024 1 024 1 024
— Circulating buffer Yes Yes Yes
— retentive Yes Yes Yes
— maintenance-free Yes Yes Yes
Recipe management
● Number of recipes 500 500 500
● Data records per recipe 1 000 1 000 1 000
● Entries per data record 2 000 2 000 2 000
● Size of internal recipe memory 4 Mbyte 4 Mbyte 4 Mbyte
● Recipe memory expandable Yes Yes Yes
Variables
● Number of variables per device 4 096 4 096 4 096
● Number of variables per screen 400 400 400
● Limit values Yes Yes Yes
● Multiplexing Yes Yes Yes
● Structures Yes Yes Yes
● Arrays Yes Yes Yes
Images
● Number of configurable images 750 750 750
● Permanent window/default Yes Yes Yes
● Global image Yes Yes Yes
● Pop-up images Yes Yes Yes
● Slide-in images Yes Yes Yes
● Image selection by PLC Yes Yes Yes
● Image number in the PLC Yes Yes Yes
Image objects
● Number of objects per image 600 600 600
● Text fields Yes Yes Yes
● I/O fields Yes Yes Yes
● Graphic I/O fields (graphics list) Yes Yes Yes
● Symbolic I/O fields (text list) Yes Yes Yes
● Date/time fields Yes Yes Yes
● Switches Yes Yes Yes
● Buttons Yes Yes Yes
● Graphic display Yes Yes Yes
● Icons Yes Yes Yes
● Geometric objects Yes Yes Yes
Complex image objects
● Number of complex objects per screen 40 40 40
● Alarm view Yes Yes Yes
● Trend view Yes Yes Yes
● User view Yes Yes Yes
● Status/control Yes Yes Yes
● Sm@rtClient view Yes Yes Yes
● Recipe view Yes Yes Yes
● f(x) trend view Yes Yes Yes
● System diagnostics view Yes Yes Yes
● Media Player Yes Yes Yes
● HTML browser Yes Yes Yes
● PDF display Yes Yes Yes
● IP camera display Yes Yes Yes
● Bar graphs Yes Yes Yes
● Sliders Yes Yes Yes
● Pointer instruments Yes Yes Yes
● Analog/digital clock Yes Yes Yes
Lists
● Number of text lists per project 500 500 500
● Number of entries per text list 500 500 500
● Number of graphics lists per project 500 500 500
● Number of entries per graphics list 500 500 500
Archiving
● Number of archives per device 50 50 50
● Number of entries per archive 50 000 50 000 50 000
● Message archive Yes Yes Yes
● Process value archive Yes Yes Yes
● Archiving methods
— Sequential archive Yes Yes Yes
— Short-term archive Yes Yes Yes
● Memory location
— Memory card Yes Yes Yes
— USB memory Yes Yes Yes
— Ethernet Yes Yes Yes
● Data storage format
— CSV Yes Yes Yes
— TXT Yes Yes Yes
— RDB Yes Yes Yes
Security
● Number of user groups 50 50 50
● Number of user rights 32 32 32
● Number of users 50 50 50
● Password export/import Yes Yes Yes
● SIMATIC Logon Yes Yes Yes
Logging through printer
● Alarms Yes Yes Yes
● Report (shift log) Yes Yes Yes
● Hardcopy Yes Yes Yes
● Electronic print to file Yes; PDF, HTML Yes; PDF, HTML Yes; PDF, HTML
Character sets
● Keyboard fonts
— US English Yes Yes Yes
Transfer (upload/download)
● MPI/PROFIBUS DP Yes Yes Yes
● USB Yes Yes Yes
● Ethernet Yes Yes Yes
● using external storage medium Yes Yes Yes
Process coupling
● S7-1200 Yes Yes Yes
● S7-1500 Yes Yes Yes
● S7-200 Yes Yes Yes
● S7-300/400 Yes Yes Yes
● LOGO! Yes Yes Yes
● WinAC Yes Yes Yes
● SINUMERIK Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher
● SIMOTION Yes Yes Yes
● Allen Bradley (EtherNet/IP) Yes Yes Yes
● Allen Bradley (DF1) Yes Yes Yes
● Mitsubishi (MC TCP/IP) Yes Yes Yes
● Mitsubishi (FX) Yes Yes Yes
● OMRON (FINS TCP) No No No
● OMRON (LINK/Multilink) Yes Yes Yes
● Modicon (Modbus TCP/IP) Yes Yes Yes
● Modicon (Modbus) Yes Yes Yes
● OPC UA Client Yes Yes Yes
● OPC UA Server Yes Yes Yes
Service tools/configuration aids
● Backup/Restore manually Yes Yes Yes
● Backup/Restore automatically Yes Yes Yes
● Simulation Yes Yes Yes
● Device switchover Yes Yes Yes
Peripherals/Options
Peripherals
● Printer Yes Yes Yes
● SIMATIC HMI MM memory card: Multi Media Card Yes; Up to 128 MB Yes; Up to 128 MB Yes; Up to 128 MB
● SIMATIC HMI SD memory card: Secure Digital memory card Yes; Up to 2 GB Yes; Up to 2 GB Yes; Up to 2 GB
● SIMATIC HMI CF memory card Compact Flash Card No No No
● USB memory Yes Yes Yes
● SIMATIC IPC USB Flashdrive (USB stick) Yes; Up to 16 GB Yes; Up to 16 GB Yes; Up to 16 GB
● SIMATIC HMI USB stick Yes; Up to 8 GB Yes; Up to 8 GB Yes; Up to 8 GB
● Network camera Yes Yes Yes
Mechanics/material
Enclosure material (front)
● Plastic No No No
● Aluminum Yes Yes Yes
● Stainless steel No No No
Dimensions
Width of the housing front 462 mm 462 mm 462 mm
Height of housing front 296 mm; Without basic adapter 296 mm; Without basic adapter 296 mm; Without basic adapter
Overall depth 101 mm; Without basic adapter 101 mm; Without basic adapter 101 mm; Without basic adapter
Weights
Weight without packaging 7.4 kg 7.4 kg 7.4 kg

Article number 6AV2124-0XC24-0AX0 6AV2124-0XC24-0BX0 6AV2124-0XC24-1AX0
SIMATIC HMI TP2200 Comfort PRO SIMATIC HMI TP2200 Comfort PRO SIMATIC HMI TP2200 Comfort PRO
General information
Product type designation TP2200 Comfort PRO TP2200 Comfort PRO TP2200 Comfort PRO
Display
Design of display TFT TFT TFT
Screen diagonal 21.5 in 21.5 in 21.5 in
Display width 475.2 mm 475.2 mm 475.2 mm
Display height 267.3 mm 267.3 mm 267.3 mm
Number of colors 16 777 216 16 777 216 16 777 216
Resolution (pixels)
● Horizontal image resolution 1 920 Pixel 1 920 Pixel 1 920 Pixel
● Vertical image resolution 1 080 Pixel 1 080 Pixel 1 080 Pixel
Backlighting
● MTBF backlighting (at 25 °C) 30 000 h 30 000 h 30 000 h
● Backlight dimmable Yes; 0-100 % Yes; 0-100 % Yes; 0-100 %
Keyboard fonts
● Function keys
— Number of function keys 0 0 0
— Number of function keys with LEDs 0 0 0
● Keys with LED No No No
● System keys No No No
● Numeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes; Projective-capacitive Yes; Projective-capacitive Yes; Projective-capacitive
Expansions for operator control of the process
● Direct keys (touch buttons as S7 input I/O) 40 40 40
Installation type/mounting
Mounting Support arm Support arm Pedestal
Mounting position vertical vertical vertical
Mounting in portrait format possible No No No
Mounting in landscape format possible Yes Yes Yes
maximum permissible angle of inclination without external ventilation 35° 35° 35°
Supply voltage
Type of supply voltage DC DC DC
Rated value (DC) 24 V 24 V 24 V
permissible range, lower limit (DC) 19.2 V 19.2 V 19.2 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V
Input current
Current consumption (rated value) 1.8 A 1.8 A 1.8 A
Starting current inrush I²t 0.5 A²·s 0.5 A²·s 0.5 A²·s
Power
Active power input, typ. 44 W 44 W 44 W
Processor
Processor type X86 X86 X86
Memory
Flash Yes Yes Yes
RAM Yes Yes Yes
Memory available for user data 24 Mbyte 24 Mbyte 24 Mbyte
Type of output
Info LED No No No
Power LED No No No
Error LED No No No
Acoustics
● Buzzer No No No
● Speaker Yes Yes Yes
Time of day
Clock
● Hardware clock (real-time) Yes Yes Yes
● Software clock Yes Yes Yes
● retentive Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks Yes; Back-up duration typically 6 weeks
● synchronizable Yes Yes Yes
Interfaces
Number of industrial Ethernet interfaces 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port 2; 2 ports (switch) + independent port
Number of RS 485 interfaces 1; RS 422 / 485 combined 1; RS 422 / 485 combined 1; RS 422 / 485 combined
Number of RS 422 interfaces 0; together with RS 485 0; together with RS 485 0; together with RS 485
Number of RS 232 interfaces 0 0 0
Number of USB interfaces 2; USB 2.0 2; USB 2.0 2; USB 2.0
Number of 20 mA interfaces (TTY) 0 0 0
Number of parallel interfaces 0 0 0
Number of other interfaces 0 0 0
Number of SD card slots 2 2 2
With software interfaces No No No
Industrial Ethernet
● Industrial Ethernet status LED 3 3 3
● Number of ports of the integrated switch 2 2 2
Protocols
PROFINET Yes Yes Yes
Supports protocol for PROFINET IO Yes Yes Yes
IRT Yes Yes Yes
PROFIBUS Yes Yes Yes
MPI Yes Yes Yes
Protocols (Ethernet)
● TCP/IP Yes Yes Yes
● DHCP Yes Yes Yes
● SNMP Yes Yes Yes
● DCP Yes Yes Yes
● LLDP Yes Yes Yes
WEB characteristics
● HTTP Yes Yes Yes
● HTTPS Yes Yes Yes
● HTML Yes Yes Yes
● XML Yes Yes Yes
● CSS Yes Yes Yes
● Active X Yes Yes Yes
● JavaScript Yes Yes Yes
● Java VM No No No
Redundancy mode
● MRP Yes Yes Yes
Further protocols
● CAN No No No
● EtherNet/IP Yes Yes Yes
● MODBUS Yes Yes Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable Yes; S7 controller Yes; S7 controller Yes; S7 controller
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes Yes Yes
● Limit class B, for use in residential areas No No No
Degree and class of protection
IP (at the front) IP65 IP65 IP65
Enclosure Type 4 at the front Yes Yes Yes
Enclosure Type 4x at the front Yes Yes Yes
IP (rear) IP65 IP65 IP65
Standards, approvals, certificates
CE mark Yes Yes Yes
cULus Yes Yes Yes
RCM (formerly C-TICK) Yes Yes Yes
KC approval No; Available soon No; Available soon No; Available soon
EAC (formerly Gost-R) No; Available soon No; Available soon No; Available soon
Ambient conditions
Suited for indoor use Yes Yes Yes
Suited for outdoor use No No No
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min. 0 °C 0 °C 0 °C
— For vertical installation, max. 45 °C 45 °C 45 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min. 0 °C 0 °C 0 °C
— At maximum tilt angle, min. 40 °C 40 °C 40 °C
Ambient temperature during storage/transportation
● min. -20 °C -20 °C -20 °C
● max. 60 °C 60 °C 60 °C
Relative humidity
● Operation, max. 90 %; no condensation 90 %; no condensation 90 %; no condensation
Operating systems
proprietary No No No
pre-installed operating system
● Windows CE Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013 Yes; Windows Embedded Compact 2013
Configuration
Message indicator Yes Yes Yes
Alarm system (incl. buffer and acknowledgment) Yes Yes Yes
Process value display (output) Yes Yes Yes
Process value default (input) possible Yes Yes Yes
Recipe management Yes Yes Yes
Configuration software
● STEP 7 Basic (TIA Portal) No No No
● STEP 7 Professional (TIA Portal) No No No
● WinCC flexible Compact No No No
● WinCC flexible Standard No No No
● WinCC flexible Advanced No No No
● WinCC Basic (TIA Portal) No No No
● WinCC Comfort (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Advanced (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
● WinCC Professional (TIA Portal) Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher Yes; V14 SP1 HSP and higher
Languages
Online languages
● Number of online/runtime languages 32 32 32
Project languages
● Languages per project 32 32 32
Functionality under WinCC (TIA Portal)
Libraries Yes Yes Yes
Applications/options
● Web browser Yes Yes Yes
● Pocket Word Yes Yes Yes
● Pocket Excel Yes Yes Yes
● PDF Viewer Yes Yes Yes
● Media Player Yes Yes Yes
● SIMATIC WinCC Sm@rtServer Yes Yes Yes
● SIMATIC WinCC Audit Yes Yes Yes
Number of Visual Basic Scripts Yes Yes Yes
Task planner
● time-controlled Yes Yes Yes
● task-controlled Yes Yes Yes
Help system
● Number of characters per info text 320 320 320
Message system
● Number of alarm classes 32 32 32
● Bit messages
— Number of bit messages 6 000 6 000 6 000
● Analog messages
— Number of analog messages 200 200 200
● S7 alarm number procedure Yes Yes Yes
● System messages HMI Yes Yes Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes Yes Yes
● Number of characters per message 80 80 80
● Number of process values per message 8 8 8
● Acknowledgment groups Yes Yes Yes
● Message indicator Yes Yes Yes
● Message buffer
— Number of entries 1 024 1 024 1 024
— Circulating buffer Yes Yes Yes
— retentive Yes Yes Yes
— maintenance-free Yes Yes Yes
Recipe management
● Number of recipes 500 500 500
● Data records per recipe 1 000 1 000 1 000
● Entries per data record 2 000 2 000 2 000
● Size of internal recipe memory 4 Mbyte 4 Mbyte 4 Mbyte
● Recipe memory expandable Yes Yes Yes
Variables
● Number of variables per device 4 096 4 096 4 096
● Number of variables per screen 400 400 400
● Limit values Yes Yes Yes
● Multiplexing Yes Yes Yes
● Structures Yes Yes Yes
● Arrays Yes Yes Yes
Images
● Number of configurable images 750 750 750
● Permanent window/default Yes Yes Yes
● Global image Yes Yes Yes
● Pop-up images Yes Yes Yes
● Slide-in images Yes Yes Yes
● Image selection by PLC Yes Yes Yes
● Image number in the PLC Yes Yes Yes
Image objects
● Number of objects per image 600 600 600
● Text fields Yes Yes Yes
● I/O fields Yes Yes Yes
● Graphic I/O fields (graphics list) Yes Yes Yes
● Symbolic I/O fields (text list) Yes Yes Yes
● Date/time fields Yes Yes Yes
● Switches Yes Yes Yes
● Buttons Yes Yes Yes
● Graphic display Yes Yes Yes
● Icons Yes Yes Yes
● Geometric objects Yes Yes Yes
Complex image objects
● Number of complex objects per screen 40 40 40
● Alarm view Yes Yes Yes
● Trend view Yes Yes Yes
● User view Yes Yes Yes
● Status/control Yes Yes Yes
● Sm@rtClient view Yes Yes Yes
● Recipe view Yes Yes Yes
● f(x) trend view Yes Yes Yes
● System diagnostics view Yes Yes Yes
● Media Player Yes Yes Yes
● HTML browser Yes Yes Yes
● PDF display Yes Yes Yes
● IP camera display Yes Yes Yes
● Bar graphs Yes Yes Yes
● Sliders Yes Yes Yes
● Pointer instruments Yes Yes Yes
● Analog/digital clock Yes Yes Yes
Lists
● Number of text lists per project 500 500 500
● Number of entries per text list 500 500 500
● Number of graphics lists per project 500 500 500
● Number of entries per graphics list 500 500 500
Archiving
● Number of archives per device 50 50 50
● Number of entries per archive 50 000 50 000 50 000
● Message archive Yes Yes Yes
● Process value archive Yes Yes Yes
● Archiving methods
— Sequential archive Yes Yes Yes
— Short-term archive Yes Yes Yes
● Memory location
— Memory card Yes Yes Yes
— USB memory Yes Yes Yes
— Ethernet Yes Yes Yes
● Data storage format
— CSV Yes Yes Yes
— TXT Yes Yes Yes
— RDB Yes Yes Yes
Security
● Number of user groups 50 50 50
● Number of user rights 32 32 32
● Number of users 50 50 50
● Password export/import Yes Yes Yes
● SIMATIC Logon Yes Yes Yes
Logging through printer
● Alarms Yes Yes Yes
● Report (shift log) Yes Yes Yes
● Hardcopy Yes Yes Yes
● Electronic print to file Yes; PDF, HTML Yes; PDF, HTML Yes; PDF, HTML
Character sets
● Keyboard fonts
— US English Yes Yes Yes
Transfer (upload/download)
● MPI/PROFIBUS DP Yes Yes Yes
● USB Yes Yes Yes
● Ethernet Yes Yes Yes
● using external storage medium Yes Yes Yes
Process coupling
● S7-1200 Yes Yes Yes
● S7-1500 Yes Yes Yes
● S7-200 Yes Yes Yes
● S7-300/400 Yes Yes Yes
● LOGO! Yes Yes Yes
● WinAC Yes Yes Yes
● SINUMERIK Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher Yes; With SINUMERIK option package as from WinCC V15 or higher
● SIMOTION Yes Yes Yes
● Allen Bradley (EtherNet/IP) Yes Yes Yes
● Allen Bradley (DF1) Yes Yes Yes
● Mitsubishi (MC TCP/IP) Yes Yes Yes
● Mitsubishi (FX) Yes Yes Yes
● OMRON (FINS TCP) No No No
● OMRON (LINK/Multilink) Yes Yes Yes
● Modicon (Modbus TCP/IP) Yes Yes Yes
● Modicon (Modbus) Yes Yes Yes
● OPC UA Client Yes Yes Yes
● OPC UA Server Yes Yes Yes
Service tools/configuration aids
● Backup/Restore manually Yes Yes Yes
● Backup/Restore automatically Yes Yes Yes
● Simulation Yes Yes Yes
● Device switchover Yes Yes Yes
Peripherals/Options
Peripherals
● Printer Yes Yes Yes
● SIMATIC HMI MM memory card: Multi Media Card Yes; Up to 128 MB Yes; Up to 128 MB Yes; Up to 128 MB
● SIMATIC HMI SD memory card: Secure Digital memory card Yes; Up to 2 GB Yes; Up to 2 GB Yes; Up to 2 GB
● SIMATIC HMI CF memory card Compact Flash Card No No No
● USB memory Yes Yes Yes
● SIMATIC IPC USB Flashdrive (USB stick) Yes; Up to 16 GB Yes; Up to 16 GB Yes; Up to 16 GB
● SIMATIC HMI USB stick Yes; Up to 8 GB Yes; Up to 8 GB Yes; Up to 8 GB
● Network camera Yes Yes Yes
Mechanics/material
Enclosure material (front)
● Plastic No No No
● Aluminum Yes Yes Yes
● Stainless steel No No No
Dimensions
Width of the housing front 527 mm 527 mm 527 mm
Height of housing front 330 mm; Without basic adapter 330 mm; Without basic adapter 330 mm; Without basic adapter
Overall depth 101 mm; Without basic adapter 101 mm; Without basic adapter 101 mm; Without basic adapter
Weights
Weight without packaging 8.5 kg 8.5 kg 8.5 kg

Brochures

Did you know, we are an entrusted Siemens approved partner?

Loading...
