6GK53244GG104ER2

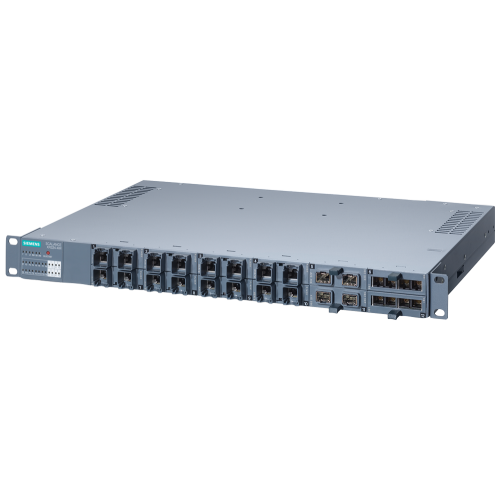

SCALANCE XR324-4M EEC managed, Layer 2 switch, 16xRJ45, 4x for MM, front ports

Manufacturer's No: 6GK5324-4GG10-4ER2     Manufacturer: Siemens
SCALANCE XR324-4M EEC managed, Layer 2 switch, 16xRJ45, 4x for MM, front ports

View 3D

Availability Back Order

£4,745.81
  • SCALANCE XR324-4M EEC Managed IE switch
  • 16x 10/100/1000 Mbit/s RJ45 ports
  • 4x 100/1000 Mbit/s 2-port media modules (electrical or optical)
  • LED diagnostics and error signaling contact
  • Select/set pushbutton for configuration
  • PROFINET IO device and network management
  • Integrated redundancy manager
  • Power supply: 2x 230 V AC
  • Ports located in the front of the device

Accessories



Product

Manufacturer Material ID -
6GK5324-4GG10-4ER2
Net Weight -
5.00kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5D002A2H / ECCN: 5D002ENCA3
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP20
Mounting method -
482.6 mm (19 inch) mounting
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
0
Number of ports 1000 Mbps SC (SX) -
8
Number of ports 1000 Mbps SC (LX) -
8
Number of module slots -
4
Number of maximum stackable switches -
0
Number of ports 10/100 Mbps M12 -
8
Number of ports 10/100/1000 Mbps RJ45 -
24
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
0
Layer 2 -
Number of other ports -
0
Number of ports 100/1000 Mbps Mini GBIC -
8
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP20
Depth -
305 Millimetre
Height -
44 Millimetre
Manageable -
Number of ports 100 Mbps SC -
8
Number of ports 100 Mbps ST -
8
Width -
483 Millimetre

Availability Back Order

£4,745.81
