6GK54080PA008AP2

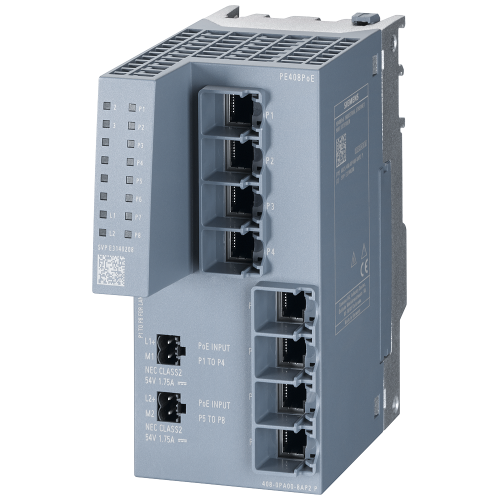

PE408PoE Port Extender, 8x RJ45 (up to 8x PoE) for extending XM-402

Manufacturer's No: 6GK5408-0PA00-8AP2     Manufacturer: Siemens
PE408PoE Port Extender, 8x RJ45 (up to 8x PoE) for extending XM-402

Availability Back Order

£2,038.25
  • PE408PoE Port Extender for SCALANCE XM-400 managed modular IE switch
  • Extends by 8x 10/100/1000 Mbit/s RJ45 ports
  • Supports up to 8 PoE ports according to IEEE802.3AT
  • Requires separate power supply for PoE functionality


Product

Manufacturer Material ID -
6GK5408-0PA00-8AP2
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCA3
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Number of ports 100 Mbps SC -
-
Number of ports 100 Mbps ST -
-
Number of other ports -
-
Number of ports 100/1000 Mbps Mini GBIC -
-
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP20
Mounting method -
DIN rail (top hat rail)
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
0
Number of ports 1000 Mbps SC (SX) -
0
Number of ports 1000 Mbps SC (LX) -
0
Number of module slots -
1
Number of maximum stackable switches -
0
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
8
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
0
Layer 2 -
Layer 3 -
Number of ports 10 Gbps Mini GBIC -
0
Power over Ethernet -
Other
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Height -
147 Millimetre
Max. PoE power -
30 Watt
Number of ports PoE -
8
Width -
70 Millimetre

Availability Back Order

£2,038.25
