6GK55248GS002AR2

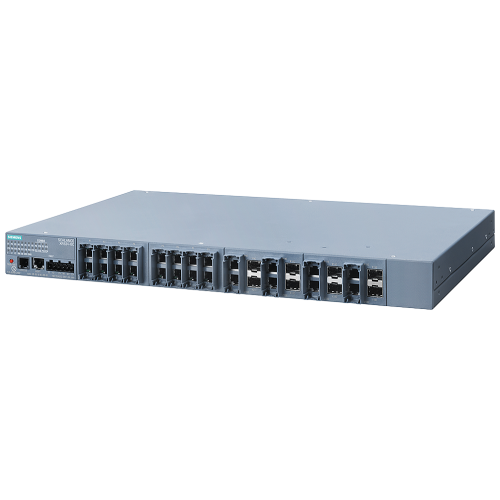

SCALANCE Xr524-8C; Managed IE Switch; Layer 3 Available W. Key-Plug; Power Supply 24V DC; 24 X 10/100/1000 Mbit/s RJ45; 8 X 100/10

Manufacturer's No: 6GK5524-8GS00-2AR2     Manufacturer: Siemens
SCALANCE Xr524-8C; Managed IE Switch; Layer 3 Available W. Key-Plug; Power Supply 24V DC; 24 X 10/100/1000 Mbit/s RJ45; 8 X 100/1000 Mbit/s SFP

Availability Back Order

£4,735.39
  • SCALANCE Xr524-8C Managed IE Switch
  • Layer 3 support with key-plug
  • Power supply: 24V DC
  • 24 x 10/100/1000 Mbit/s RJ45 ports
  • 8 x 100/1000 Mbit/s SFP ports
  • 8 combo ports
  • Error signaling contact
  • Select/set button
  • PROFINET IO Device
  • Redundancy functions

Read more

  • Office features: RSTP, VLAN, IGMP
  • C-plug included in scope of delivery

Accessories



Product

Manufacturer Material ID -
6GK5524-8GS00-2AR2
Net Weight -
4.86kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5D002A2H / ECCN: 5D002ENCA3
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Number of ports 100 Mbps SC -
-
Number of max. stackable switches -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Mounting method -
482.6 mm (19 inch) mounting
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
0
Number of ports 1000 Mbps SC (SX) -
0
Number of ports 1000 Mbps SC (LX) -
0
Number of module slots -
0
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
24
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
8
Layer 2 -
Layer 3 -
Degree of protection (IP) -
IP20
Number of other ports -
0
Number of ports 100/1000 Mbps Mini GBIC -
8
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Number of ports 10 Gbps RJ45 -
0
Degree of protection (IP rating) -
IP20
Depth -
305 Millimetre
Height -
44 Millimetre
Manageable -
Number of ports 100 Mbps ST -
0
Width -
449 Millimetre

Availability Back Order

£4,735.39
