6XV18301CH30

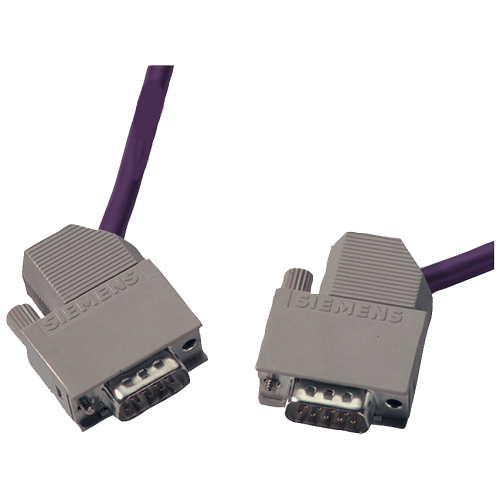

Plug-in cable 830-1T for PROFIBUS, connection Terminal devices pre-assembled at OLM and OBT, 3.0 m

Manufacturer's No: 6XV1830-1CH30     Manufacturer: Siemens
Plug-in cable 830-1T for PROFIBUS, connection Terminal devices pre-assembled at OLM and OBT, 3.0 m

Availability Available to order

£67.00
  • Plug-in cable 830-1T for PROFIBUS
  • Pre-assembled with 2 D-sub connectors, 9-pole
  • Cable length: 3 meters
  • Terminated on both ends


Product

Manufacturer Material ID -
6XV1830-1CH30
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
26121609

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Conductor category -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Other
Diameter conductor -
0.61 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
None
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Circuit integrity -
No
Sheath material -
Polyvinyl chloride (PVC)
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
Other
Conductor Diameter -
0.61 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
86 Millimetre
Min. permitted bending radius, moving application/free movement -
86 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
86 Millimetre
Number of cores -
2
Number of stranding elements -
1
Outer diameter approx. -
5.7 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Sheath colour -
Purple/violet
Stranding element -
Pairs
