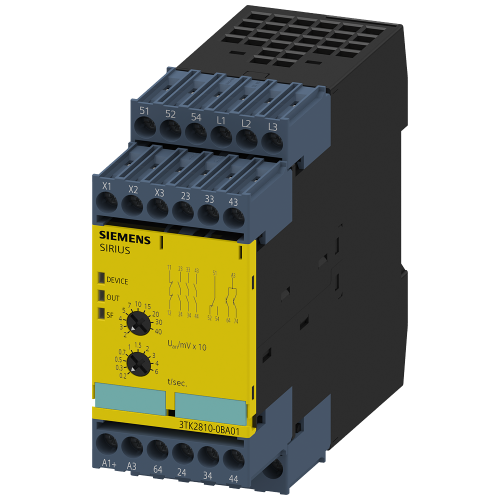

3TK28100BA01

Standstill monitoring safety relay, Cat.4 / SIL 3 / PL e, IP20, screw terminal

Manufacturer's No: 3TK2810-0BA01     Manufacturer: Siemens
Standstill monitoring safety relay, Cat.4 / SIL 3 / PL e, IP20, screw terminal

View 3D

Availability Back Order

£767.75
  • Safety relay for standstill monitoring
  • Supply voltage: 24 V DC
  • Contact configuration: 3 Normally Open (NO) + 1 Normally Closed (NC)
  • Auto-start feature
  • Maximum error category according to EN 954-1: 4
  • Maximum achievable Performance Level (PL) according to EN 13849-1:
  • Maximum achievable Safety Integrity Level (SIL) according to IEC 61508: 3


Product

Manufacturer Material ID -
3TK2810-0BA01
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39121529

Technical Specification

-
Siemens
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Rated control supply voltage Us at DC -
24 Volt
Category according to EN 954-1 -
None
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Model -
Other
Number of outputs, signalling function, delayed, with contact -
0
Rated control supply voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Voltage type for actuating -
DC
Depth -
120 Millimetre
Evaluation inputs -
Other
Height -
138.5 Millimetre
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
0
Number of outputs, safety related, undelayed, with contact -
4
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, semiconductors -
2
Number of outputs, signalling function, undelayed, with contact -
2
Release-delay -
0.2 Second
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Type of electric connection -
Screw connection
Width -
45 Millimetre
With approval according to UL -
With approval for BG BIA -
With approval for TÜV -
With detachable clamps -
With feedback circuit -

Availability Back Order

£767.75
