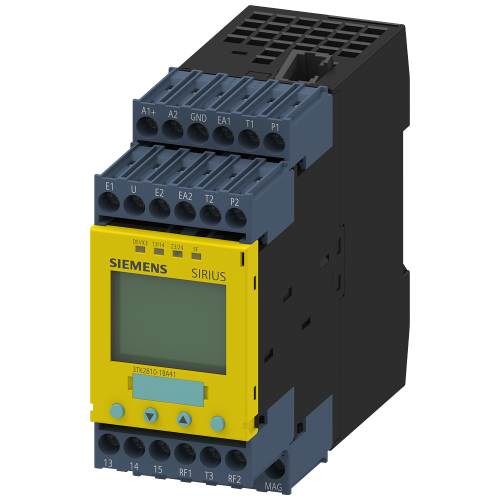

3TK28101KA41

Safety switching device safety-oriented speed monitoring, 24 V DC

Manufacturer's No: 3TK2810-1KA41     Manufacturer: Siemens
Safety switching device safety-oriented speed monitoring, 24 V DC

View 3D

Availability Back Order

£1,283.68
  • Safety relay for safety-oriented speed monitoring
  • Input voltage: 110-240 V AC/DC
  • Overall width: 45 mm
  • Contact configuration: EC instantaneous - 2 NO, EC delayed - 0, SC - 2 electrical
  • Auto-start/manual start functionality
  • Maximum achievable Performance Level (PL) according to EN 13849-1: e
  • Maximum achievable Safety Integrity Level (SIL) according to IEC 61508: 3


Product

Manufacturer Material ID -
3TK2810-1KA41
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
Siemens
Release-delay -
- Second
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Category according to EN 954-1 -
None
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Model -
Other
With detachable clamps -
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated control supply voltage at DC -
110 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Voltage type for actuating -
AC/DC
Depth -
124.3 Millimetre
Evaluation inputs -
2-channel
Height -
105.9 Millimetre
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
0
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, signalling function, delayed, semiconductors -
1
Number of outputs, signalling function, delayed, with contact -
0
Number of outputs, signalling function, undelayed, semiconductors -
1
Number of outputs, signalling function, undelayed, with contact -
0
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Suitable for monitoring of position switches -
Suitable for monitoring of proximity switches -
Type of electric connection -
Screw connection
Width -
45 Millimetre
With approval according to UL -
With approval for TÜV -
With feedback circuit -
With start input -

Availability Back Order

£1,283.68
