3SE22430XX40

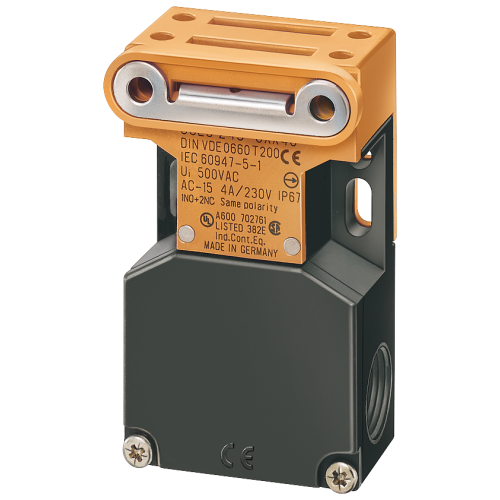

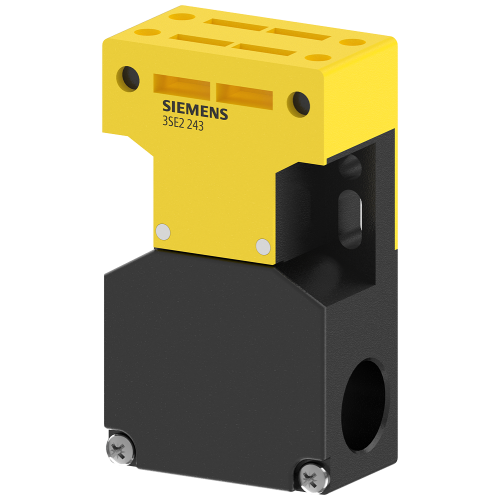

Plastic Safety Switch with separate actuator, 52mm, Latching Force, IP67

Manufacturer's No: 3SE2243-0XX40     Manufacturer: Siemens
Plastic Safety Switch with separate actuator, 52mm, Latching Force, IP67

View 3D

Availability Back Order

£38.14
  • Safety position switch with separate actuator
  • Molded-plastic enclosure for lateral and face-end installation
  • Slow-action contacts: 1 Normally Open + 2 Normally Closed
  • Pull-out force: 5 N
  • Supplied without actuator

Selectable mandatory product



Product

Manufacturer Material ID -
3SE2243-0XX40
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
IP67
Type of interface -
None
Type of switching contact -
Slow-action switch
Type of electric connection -
Cable entry metrical
Construction type housing -
Other
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-30 Degrees celsius
Coating housing -
Other
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
36 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
90 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 230 V -
4 Ampere
Rated operation current Ie at DC-13, 24 V -
4 Ampere
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
None
Type of interface for safety communication -
None
Width sensor -
52 Millimetre

Availability Back Order

£38.14
