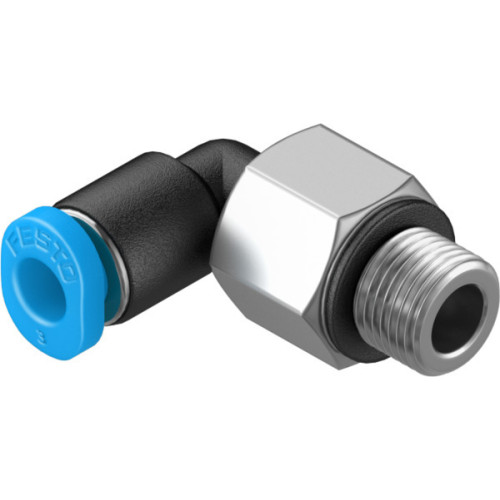

QSML-M5-2 Push-in L-fitting

Manufacturer's No: QSML-M5-2     Manufacturer: Festo
QSML-M5-2 Push-in L-fitting

Availability Available to order

£3.62
  • Product: QSML-M5-2 Push-in L-fitting
  • Mini series L-shape fitting with external hexagon
  • Male thread size: M5
  • For tubing outer diameter: 2 mm
  • Package quantity: 10 pieces
  • Operating pressure range: -0.095 MPa to 0.6 MPa (-0.95 bar to 6 bar, -13.775 psi to 87 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 1.4 MPa (-0.95 bar to 14 bar, -13.775 psi to 203 psi)
  • Operating medium: Compressed air (ISO 8573-1:2010)
  • Lubricated operation possible
  • Corrosion resistance class: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -10°C to 80°C
  • Nominal torque: 1.2 Nm
  • Tolerance for nominal tightening torque: ± 20%
  • Product weight: 2.7 g
  • Mounting type: External hexagon (A/F 8 mm)
  • Pneumatic connection port 1: Male thread M5
  • Pneumatic connection port 2: For tubing OD 2 mm
  • Release ring color: Blue
  • Material: Screwed plug - Nickel-plated brass, Housing - PBT, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
QSML-M5-2
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
Festo

Availability Available to order

£3.62
