132621

QSPKG10-3 Cartridge

Manufacturer's No: QSPKG10-3     Manufacturer: Festo

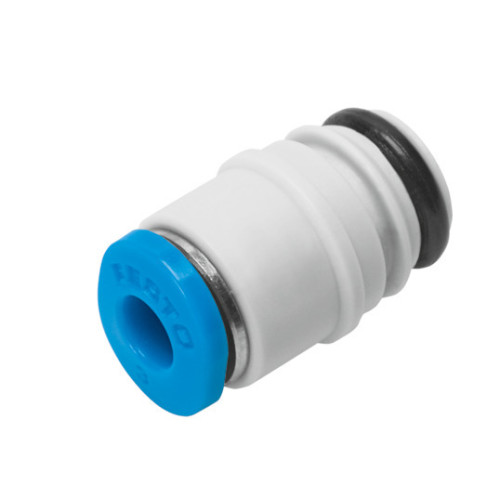

QSPKG10-3 Cartridge

Availability Available to order

£1.96
  • Cartridge model: QSPKG10-3
  • Polymer version in grey color
  • Straight design with mounting pin
  • Cartridge size: 10 mm for tubing O.D. 3 mm
  • Package quantity: 10 pieces
  • Size: Mini, Nominal size: 1.6 mm
  • Seal type on screwed plug: O-ring
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Lubricated operation possible

Read more

  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -5°C to 60°C
  • Product weight: 1.5 g
  • Type of mounting: Mounting pin
  • Pneumatic connection port 1: Cartridge 10 mm
  • Pneumatic connection port 2: For tubing O.D. 3 mm
  • Release ring color: Blue
  • RoHS-compliant materials
  • Housing material: PA-reinforced
  • Release ring material: POM
  • Tubing seal material: NBR
  • Tubing clamp component material: High-alloy stainless steel


Product

Manufacturer Material ID -
QSPKG10-3
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
BG
UNSPSC -
41111926
