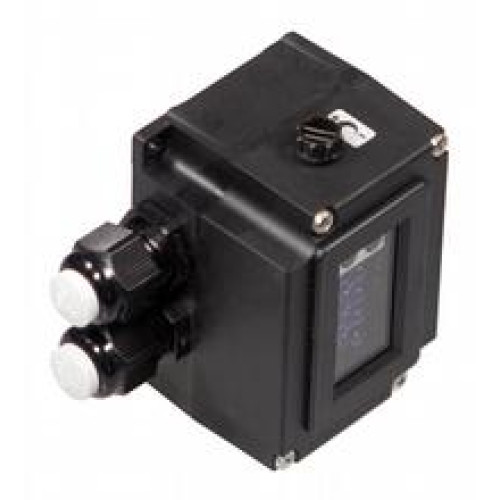

DAD15-8P/35

Effective detection range: 0 ... 2500 mm, Light type: modulated infrared light, Interface type: 8 bit parallel, bidirectional 10 i

Manufacturer's No: 120839     Manufacturer: Pepperl+Fuchs
Effective detection range: 0 ... 2500 mm, Light type: modulated infrared light, Interface type: 8 bit parallel, bidirectional 10 inputs, PNP , 10 outputs, PNP, Data rate: 225 Bit/s, Connection: 2 M..

Availability Back Order

£547.41
  • Detection Range: 0 to 2500 mm
  • Light Type: Modulated Infrared Light
  • Interface Type: 8-bit Parallel, Bidirectional
  • Inputs: 10 PNP
  • Outputs: 10 PNP
  • Data Rate: 225 Bit/s
  • Connection: 2 M16 Cable Glands, Tension Spring Terminals
  • Operating Voltage: 10 to 60 V DC
  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)

Accessories



Product

Manufacturer Material ID -
120839
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
9013 8090
Country of Origin -
DE
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£547.41
