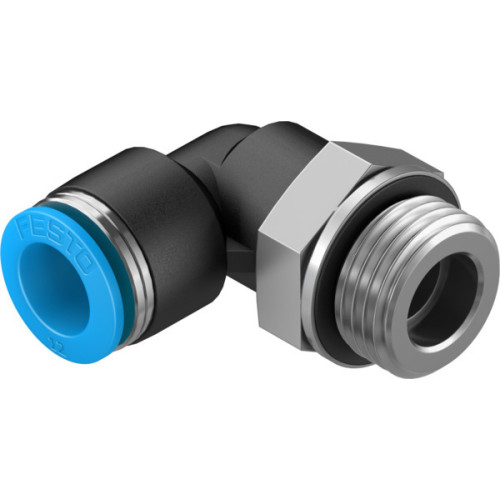

QSL-G1/2-12-20 Push-in L-fitting

Manufacturer's No: QSL-G1/2-12-20     Manufacturer: Festo
QSL-G1/2-12-20 Push-in L-fitting

Availability Available to order

£7.16
  • Push-in L-fitting QSL-G1/2-12-20
  • Male thread G1/2 for tubing O.D. 12mm
  • Package quantity: 20 pieces
  • Operating pressure range: -0.095 MPa to 6 bar (-0.95 to 87 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 14 bar (-0.95 to 203 psi)
  • Max. operating pressure for water: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cleanroom class: Class 4 according to ISO 14644-1
  • Ambient temperature range: -10°C to 80°C

Read more

  • Nominal torque: 26 Nm with ±20% tolerance
  • Product weight: 67g
  • Pneumatic connection: Male thread G1/2 for port 1, tubing O.D. 12mm for port 2
  • Material: Nickel-plated brass screwed plug, RoHS-compliant
  • Housing material: PBT, release ring material: POM
  • Tubing seal material: NBR, tubing clamp component: High-alloy stainless steel
  • Design features: L-shape with external hexagon, push-pull principle
  • Seal type on screwed plug: Sealing ring
  • Mounting position: Optional
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Note on materials: Water G-thread only possible with sealing ring type OL as additional accessory
  • Note on operating and pilot medium: Lubricated operation possible


Product

Manufacturer Material ID -
QSL-G1/2-12-20
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
TW
UNSPSC -
40172521
