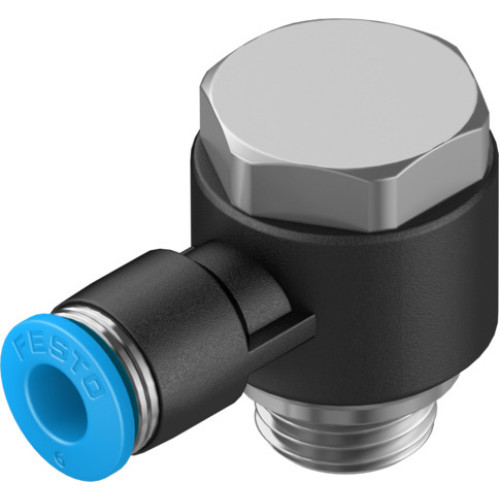

QSLV-G1/4-6-100 Push-in L-fitting

Manufacturer's No: QSLV-G1/4-6-100     Manufacturer: Festo
QSLV-G1/4-6-100 Push-in L-fitting

Availability Available to order

£3.45
  • Product: QSLV-G1/4-6-100 Push-in L-fitting
  • Male thread size: G1/4
  • For tubing outer diameter: 6mm
  • Package quantity: 100 pieces
  • Operating pressure range: -0.095 MPa to 6 bar (-0.95 to 87 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 1.4 MPa (-0.95 to 203 psi)
  • Maximum water pressure: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class: 1 (Low corrosion stress)
  • Cleanroom class: Class 4 according to ISO 14644-1

Read more

  • Temperature range: -10°C to 80°C
  • Nominal torque: 9 Nm
  • Product weight: 44g
  • Material: Housing - PBT, Hollow bolt - Nickel-plated brass, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • Colour of release ring: Blue
  • RoHS-compliant materials
  • Design: L-shape with hollow bolt and external hex
  • Mounting position: Optional
  • Type of seal on screwed plug: Sealing ring
  • Design principle: Push-pull
  • Tolerance for nominal tightening torque: ± 20%
  • Note: G-thread for water only possible with sealing ring type OL as additional accessory
  • Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L


Product

Manufacturer Material ID -
QSLV-G1/4-6-100
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
Festo

Availability Available to order

£3.45
