132329

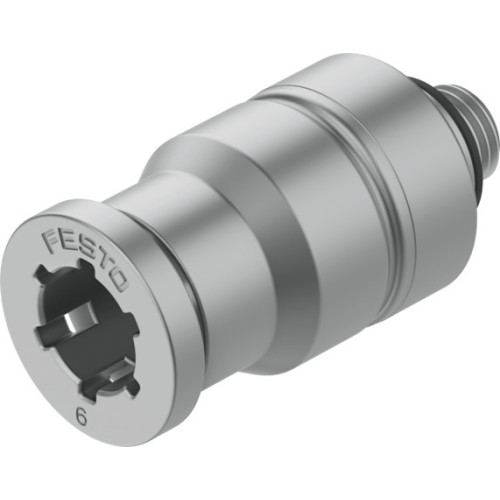

CRQS-M5-6-I Push-in fitting

Manufacturer's No: CRQS-M5-6-I     Manufacturer: Festo
CRQS-M5-6-I Push-in fitting

Availability Available to order

£27.89
  • Product: CRQS-M5-6-I Push-in Fitting
  • Stainless steel version with straight design and internal hexagon
  • Male thread size: M5, for tubing outer diameter: 6mm
  • Food-safe, suitable for food applications
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Maximum water pressure: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class: CRC 4 (Very high corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -15°C to 120°C

Read more

  • Nominal torque: 1.33 Nm, tolerance: ± 20%
  • Product weight: 7.7 g
  • Suitable cables: PFAN
  • Material: High-alloy stainless steel for housing, screwed plug, release ring, and tubing clamp component
  • Material thread seal: FPM and high-alloy stainless steel
  • Mounting: Internal hexagon size 2 mm
  • Pneumatic connections: Port 1 - Male thread M5, Port 2 - For tubing outer diameter of 6 mm
  • RoHS-compliant materials, lubricated operation possible


Product

Manufacturer Material ID -
CRQS-M5-6-I
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
