132644

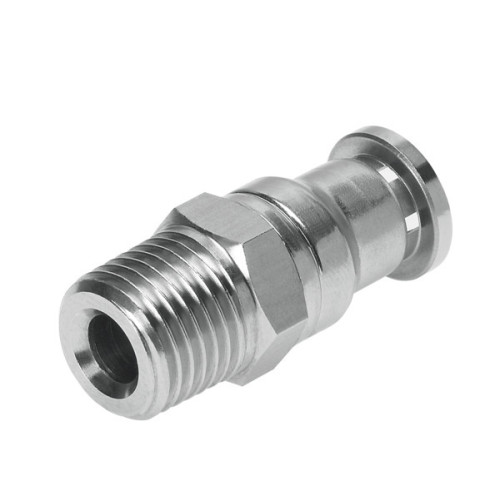

CRQS-1/4-6 Push-in fitting

Manufacturer's No: CRQS-1/4-6     Manufacturer: Festo
CRQS-1/4-6 Push-in fitting

Availability Available to order

£32.86
  • Product: CRQS-1/4-6 Push-in Fitting
  • Stainless steel version
  • Straight design with external hexagon
  • Male thread R1/4 for tubing O.D. 6mm
  • Food-safe
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Max. operating pressure for water: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 4 (Very high corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: -15°C to 120°C
  • Product weight: 18g
  • Suitable cables: PFAN
  • Type of mounting: External hexagon, size 14mm
  • Pneumatic connection port 1: Male thread R1/4
  • Pneumatic connection port 2: For tubing O.D. 6mm
  • Material: High-alloy stainless steel (housing, release ring, tubing clamp component), FPM (tubing seal)
  • RoHS-compliant materials
  • Note: Lubricated operation possible
  • Suitable for food use (refer to supplementary material information)


Product

Manufacturer Material ID -
CRQS-1/4-6
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
