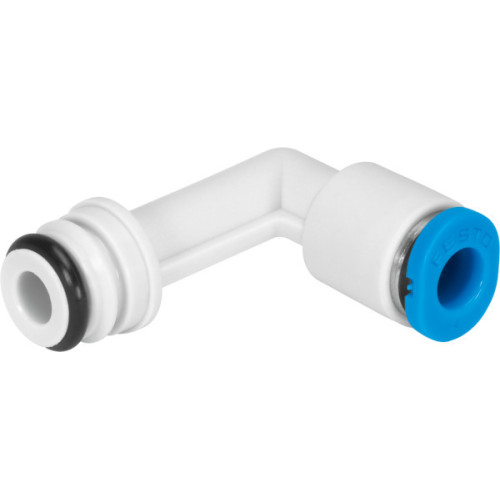

QSPLLKG10-3 Cartridge

Manufacturer's No: QSPLLKG10-3     Manufacturer: Festo
QSPLLKG10-3 Cartridge

Availability Available to order

£2.59
  • Cartridge model: QSPLLKG10-3 Polymer version, grey
  • Cartridge size: 10 mm for tubing O.D. 3 mm
  • Package quantity: 10 pieces
  • Design: L-shape, long with mounting pin
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 to 10 bar, -13.775 to 145 psi)
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class: CRC 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -5°C to 60°C
  • Product weight: 2.5 g

Read more

  • Material: Housing - PA-reinforced, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • Type of seal on screwed plug: O-ring
  • Type of mounting: Mounting pin
  • Pneumatic connection: Port 1 - Cartridge 10 mm, Port 2 - For tubing O.D. 3 mm
  • Colour of release ring: Blue
  • Note on materials: RoHS-compliant
  • Note on operating and pilot medium: Lubricated operation possible


Product

Manufacturer Material ID -
QSPLLKG10-3
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
JP
UNSPSC -
41111926
